Warehouse With Office

What is a Prefabricated Steel Warehouse with Office?

A warehouse with office represents the pinnacle of modern industrial real estate development. Moving away from traditional designs where administrative offices and production zones are separated into detached buildings, this solution integrates both functionalities onto a single monolithic foundation utilizing advanced Pre-Engineered Building (PEB) connection technology. By sharing foundational tie beams and internal drainage networks, this setup minimizes wasted alleyway spaces while using high-performance acoustic and fire-rated enclosure systems to allow premium executive operations and heavy-duty manufacturing to thrive side by side.

Key Advantages & Features：

Overcoming Land Constraint Limitations: Purpose-built for industrial plots with narrow widths, utilizing a "front-high, rear-wide" multi-dimensional spatial layout to unlock double the operational floor space on a limited land asset.

Heavy-Duty Composite Floor Structures: Floor decks feature heavy-duty profiled steel sheet decking topped with cast-in-place reinforced concrete (120mm for the office, 100mm for the workshop). This eliminates the structural vibrations and hollow acoustic reverberations common in low-end steel sheds, providing a rock-solid foundation capable of safely supporting heavy machinery and high-density office layouts.

Superior Disaster and Seismic Resilience: The entire structural matrix is calculated against an 8-degree seismic intensity and a Grade 3 fire resistance rating, allowing it to safely absorb and dissipate high-velocity lateral wind forces and intense seismic shear waves.

Zero-Leak Internal Drainage System: Specially engineered with dual internal heavy-gauge steel eave gutters connected to high-capacity indoor downspouts. This gives the exterior facade a clean, sleek architectural look while entirely eliminating the common risks of external gutter overflows and perimeter water damage during monsoon seasons.

Target Functions & Applications：

Perfectly suited for: High-Tech Enterprise Headquarters, Automotive Manufacturing & Precision Assembly Plants, Smart Hardware R&D Hubs, Pharmaceutical Clean Storage, and Global E-Commerce Distribution Centers.

Honstar's Manufacturing & Engineering Capability: Honstar holds top-tier national qualifications for heavy-duty structural steel design and advanced fabrication. For complex, multi-tiered integrated structures, our automated production lines pre-engineer every single H-beam and connection node down to a sub-millimeter precision tolerance, proudly backing up our 90-day rapid structural completion guarantee.

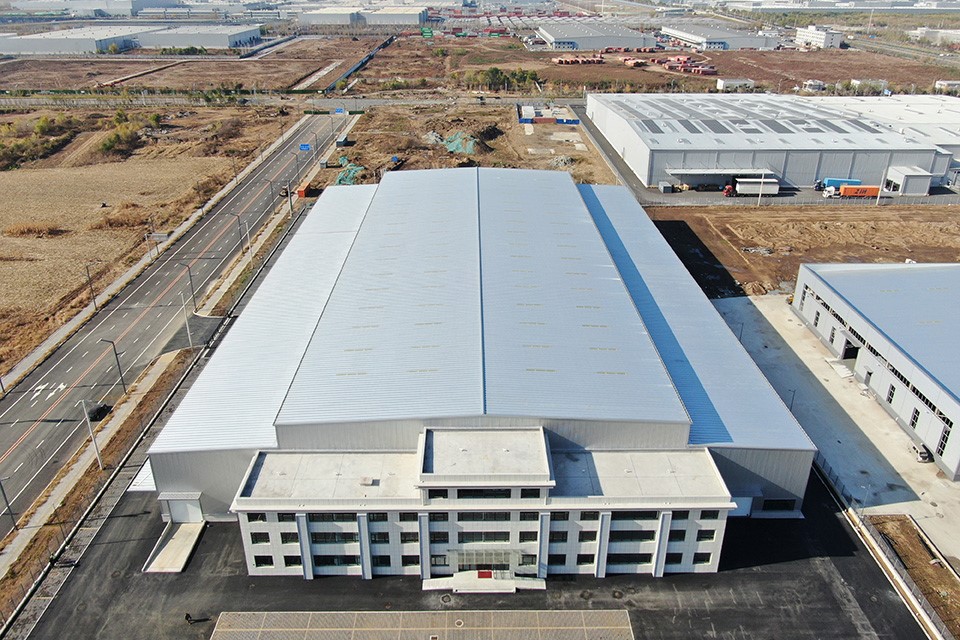

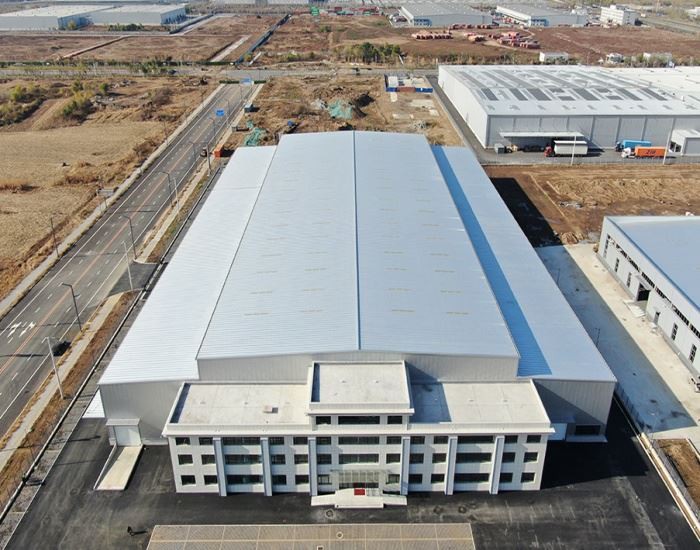

 Comprehensive 10,500 m² Solution Case Study

Total Built-up Area: 10,500 Square Meters

Structural Layout: 32m x 10m Multi-functional Office Block (3 Floors / Partial 4 Floors) + 90m x 50m Double-Deck Portal Steel Frame Production Workshop (10m Eave Height)

Premium Materials: Main structural skeleton utilizes premium Q355-grade H-beams (396*199 series, etc.) with a 100% high-strength bolt connection system

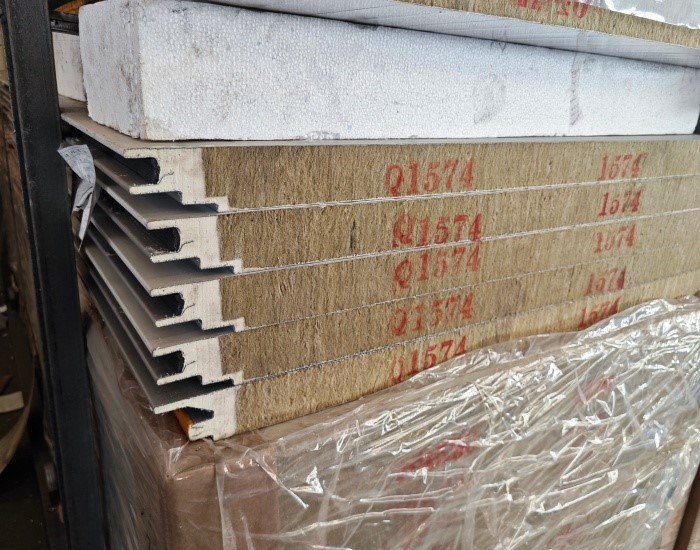

Enclosure & Acoustic Isolation: 75mm rock wool sandwich panels for the office section + 50mm rock wool sandwich panels for the workshop section, creating an acoustic firewall between zones

Engineering Standards: Engineered for 8-degree seismic intensity, Grade 3 fire resistance rating, a 50-year structural design life, and a rapid 90-day turnkey handover

Case History: Building a 10,500 m² Executive Headquarters & Manufacturing Plant on a Narrow Lot：

1. Client Background A rapidly expanding manufacturer of high-end industrial automation machinery acquired a prime plot of land within a busy metropolitan industrial zone. The lot offered significant depth but was heavily restricted in width. As their global corporate home base, the facility needed to accommodate an 80-person administrative executive team, state-of-the-art product R&D laboratories, and a heavy-duty semi-automated assembly line in the rear.

2. Core Challenges & Pain Points

Narrow Plot Bottleneck: If the office building and production workshop were built as separate detached structures, mandatory local fire safety separation distances and side clearance alleys would consume nearly 30% of the land, leaving the workshop too narrow for a functional assembly line.

Acoustic & Vibration Isolation: Heavy machinery assembly creates substantial ground vibrations and high-decibel impact noise. The client needed absolute acoustic quiet on the upper executive office floors and the 4th-floor boardroom during high-profile client negotiations.

Critical Time Crunch: The lease on the client's existing facility was expiring rapidly. The new integrated headquarters had to be completely structurally sealed, weather-proofed, and ready for interior fit-out within exactly 3 months.

3. Deep Engineering Communication & Custom Technical Solution Honstar's engineering division collaborated closely with the client's technical team over multiple BIM modeling sessions, executing this custom integrated portal steel frame connection design:

Seamless Front-Office Rear-Workshop Connection: We unified the 32m x 10m multi-story office block and the 90m x 50m double-deck workshop onto a shared independent foundation and tie-beam system. The office block features perfectly stepped heights across its levels (1st floor: 3.5m, 2nd floor: 3m, 3rd floor: 3m, partial 4th floor: 3m), connecting cleanly into the 10m eave height of the workshop. The workshop is split into two levels (1st floor net clearance: 5m, 2nd floor: 4.5m), optimizing vertical space and saving massive land clearance areas.

Q355-Grade Structural Skeleton & Advanced Material Specification:

Framework Layer: The primary load-bearing columns and beams for the first tier utilize heavy-duty Q355 H-beams sized at 396*199*7*11mm, supplemented by 298*149mm secondary grid joists. The office floor features 120mm of cast concrete over steel decking, while the workshop floor utilizes 100mm, creating a rigid composite floor that eliminates vibration transfer. The workshop's second tier transitions smoothly to 248*124*5*8mm H-beams, saving total steel weight while maintaining a wide 5-meter clear clearance on the ground floor.

Enclosure Layer: The office walls and roof are fitted with premium 75mm thick rock wool sandwich panels adorned with exterior architectural aluminum-plastic composite panel accents. The workshop utilizes economical 50mm-thick rock wool sandwich panels. Rock wool delivers Class A fire-retardant performance and superior acoustic dampening, keeping the office pristine and silent.

1.2m Anti-Collision Base Brick Wall: The perimeter wall stands with a 1.2-meter-high freshly laid concrete brick wall, with the rock wool sheets starting directly above it. This provides a waterproof barrier against ground-level moisture and protects the building from accidental structural impacts caused by heavy forklifts in narrow driveway aisles.

4. Project Turnaround & Client Satisfaction Powered by Honstar's automated CNC production lines, over 500 tons of heavy Q355 structural steel and the full array of rock wool insulation panels were fabricated, quality-checked, and packaged for export within 30 days. Because every connection joint and bolt hole was pre-cut to exact millimeter tolerances at our plant, the local assembly team executed a 100% weld-free bolted erection. The entire structure was fully sealed and proofed in exactly 90 days. The client praised the lightning-fast delivery, the striking modern appearance of the glass-accented office front, and the expansive, column-free operational freedom of the two-tier workshop.

Global Adaptability of This Solution

This 10,500 m² corporate workspace blueprint is highly recommended for:

Strict Metropolitan Industrial Zones Worldwide: Fully satisfies international engineering metrics requiring 8-degree seismic analysis and Grade 3 fire compliance.

Fast-Growth Manufacturing Enterprises: The 90-day structural turnaround represents a premier choice for rapid market entry and optimized capital allocation.

Why Global Buyers Choose Honstar for Complex Multi-Functional Erections

1. Advanced BIM & Tekla Structural Analysis An integrated warehouse with an attached multi-story office requires complex structural calculations far beyond a basic steel shed. Honstar's structural engineering division utilizes Tekla Structures to map the entire dynamic load profile. We carefully calculate multi-tier office dead loads, live loads of warehouse machinery, 1/10 roof slope rainfall runoff values, and steel thermal expansion variables over a 50-year lifespan, eliminating engineering risks before production begins.

2. Sub-Millimeter Fabrication at Our 67,000 m² Facility We source certified Q355 structural steel, processing all 396*199 and 298*149 H-beams on fully automated double-sided submerged arc welding lines. Every bolt hole position is punched under strict CNC digital tracking with a tolerance margin under 0.5mm, ensuring a flawless fit on-site and enabling a zero-welding, zero-modification installation within tight timelines.

3. Full Turnkey Material Integration We handle more than just the heavy iron. Honstar sources and consolidates the entire material kit: from the 75mm/50mm Class A rock wool panels and heavy floor decking to internal downspouts, architectural aluminum trims, and heavy-duty automatic roller shutter doors. This unified supply chain approach saves you months of sourcing time and guarantees perfect fitment compatibility.

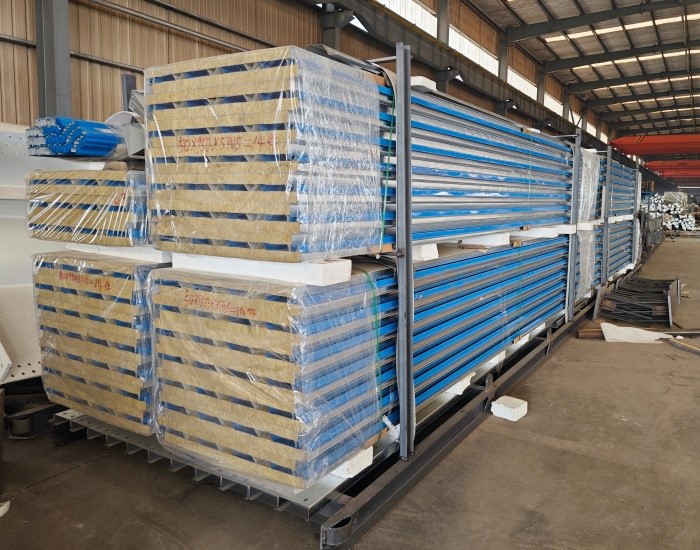

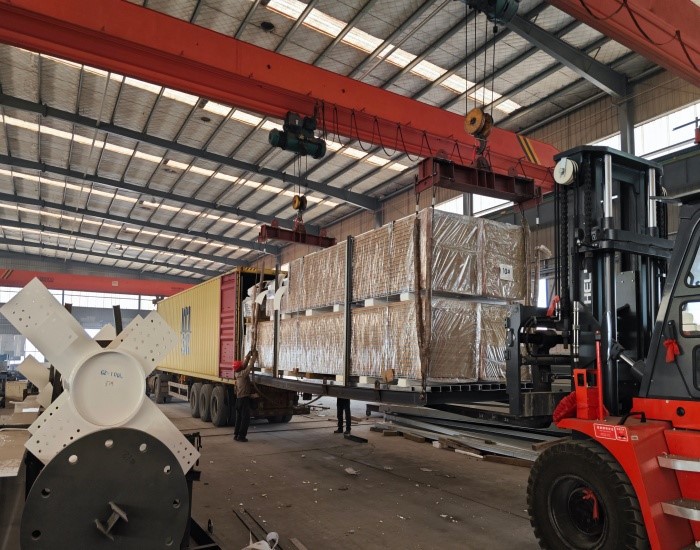

4. Export-Grade Packing & Precision Logistics A 10,500 m² facility requires dozens of high-cube containers managed under precision loading protocols. All columns, beams, and floor sheets are secured on custom heavy-duty steel pallets and wrapped in multi-layered protective films. Every container is shipped with a dedicated, color-coded packing list matched directly to our 3D assembly blueprints, allowing your team to easily locate parts on-site without delays.

FAQ:

Q1: How do the 75mm and 50mm rock wool sandwich panels perform regarding fire safety and acoustic noise control?

A: Rock wool is rated as a Class A non-combustible material with exceptional fire-retardant properties. We purposely specify thicker 75mm panels for the administrative office block to maximize sound dampening against workshop noise and lower summer cooling utility bills. The 50mm panels on the workshop hull provide an incredibly cost-effective path to achieving international Grade 3 fire resistance standards.

Q2: Will a 1/10 roof slope with an internal rain drainage system cause water leaks inside the office or workshop?

A: Not at all. This is a highly proven structural drainage method for large-scale industrial architectures. The 1/10 slope forces heavy tropical downpours to sheet rapidly off the roof. The water lands in wide, heavy-gauge steel eave gutters running internally along the structure, venting directly into large-diameter vertical downspouts.

Because the drainage system is contained, it avoids the clogging, high-wind damage, and rapid UV aging associated with cheap external PVC gutters.

Q3: What unique support engineering is utilized to carry the weight of 120mm and 100mm cast concrete floors?

A: Cast-in-place concrete introduces massive dead loads, requiring an incredibly rigid supporting steel grid to prevent sagging. Our design implements thick 396*199*7*11mm Q355 H-beams as the main columns and girders, paired with tightly spaced 298*149mm secondary joists. The profiled steel decking binds permanently with the poured concrete layer, forming a solid composite floor system designed to handle heavy industrial vibrations effortlessly for 50+ years.

Q4: How does this integrated building achieve an 8-degree seismic intensity rating?

A: To withstand 8-degree seismic forces, we implement thick structural connection plates at all beam-to-column junctions, secured by dense clusters of high-tensile Grade 10.9 bolts. Furthermore, we integrate strategic networks of rigid X-bracing steel rods across the roof planes and column bays. This transforms the independent steel frames into a highly ductile, monolithic structural cage capable of absorbing and neutralizing severe lateral seismic movements.

Q5: Does the stated 90-day construction timeline include the foundation works? What is Honstar's exact scope?

A: The 90-day timeline covers the pure steel construction phase, starting from the moment your local crew finishes pouring the concrete foundation and tie-beams, up to the final structural bolt tightening and panel sealing. Honstar's scope encompasses the complete structural engineering drawings, the fabrication of all steel and enclosure components, and step-by-step technical documentation to guide your local team through a rapid assembly.
