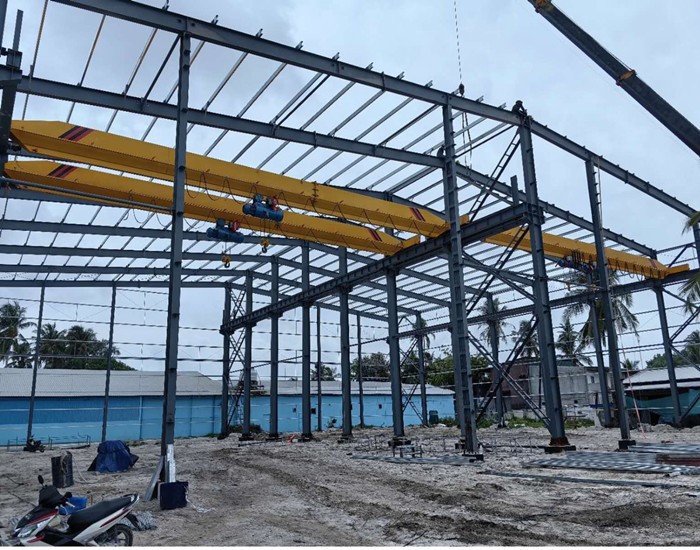

Warehouse With Crane

Heavy Duty Steel Warehouse With Overhead Crane System

A warehouse with crane is a steel structure industrial building equipped with overhead crane systems for lifting, moving, and handling heavy materials or equipment inside the facility. It's an industrial-grade steel structure building specifically designed for vertical lifting and heavy object movement, it features precision-welded "brackets" to the main frame columns of a traditional precast steel frame (PEB) to support the crane runway beam and crane rails.

Key Features & Advantages:

Seamless Dynamic Load Bearing: Compared to ordinary warehouses, overhead crane buildings must undergo rigorous fatigue life calculations during design to specifically withstand the enormous longitudinal and lateral impacts from frequent crane starts and stops.

Significantly Increased Operational Efficiency: Instead of relying on small forklifts or manual handling, overhead cranes enable seamless 3D lifting of heavy objects across the entire site, greatly freeing up ground space.

Ultra-High Space Utilization: The 9-meter eave height design ensures that even after a 10-ton overhead crane lifts large items, there is still ample headroom for container trucks to pass and for high-level stacking.

Fully Prefabricated Modular Assembly: Core components (including crane beams and connecting nodes) are all prefabricated in the factory with high precision, allowing for quick on-site assembly with all bolted connections, perfectly addressing the challenges of a shortage of skilled overseas workers and heavy welding equipment.

Common Applications:

Warehouse with overhead crane buildings are widely used in: mining machinery repair workshops, non-ferrous metal and stone processing plants, heavy steel structure distribution centers, large-item transfer warehouses at logistics terminals, and automobile manufacturing assembly lines.

Honstar provides customized steel structure warehouse solutions for industrial and logistics applications, has over 12 years of experience in system integration for overseas heavy-duty crane workshops. We can not only manufacture high-precision steel structure buildings for you, but also conduct 100% integrated load-bearing verification design of the main steel structure and crane system, providing you with a one-stop industrial upgrade solution.

50×100 Steel Structure Warehouse with Crane Solution for Africa

The following is a customized heavy duty steel warehouse with overhead cranes solution designed for a client in DR Congo, Africa requiring efficient heavy equipment handling and industrial storage space.

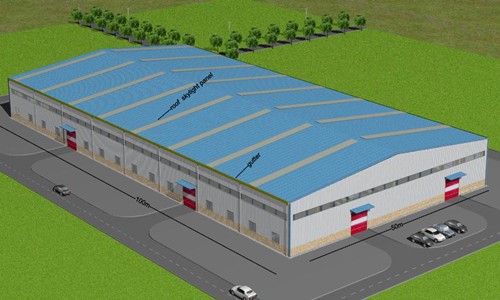

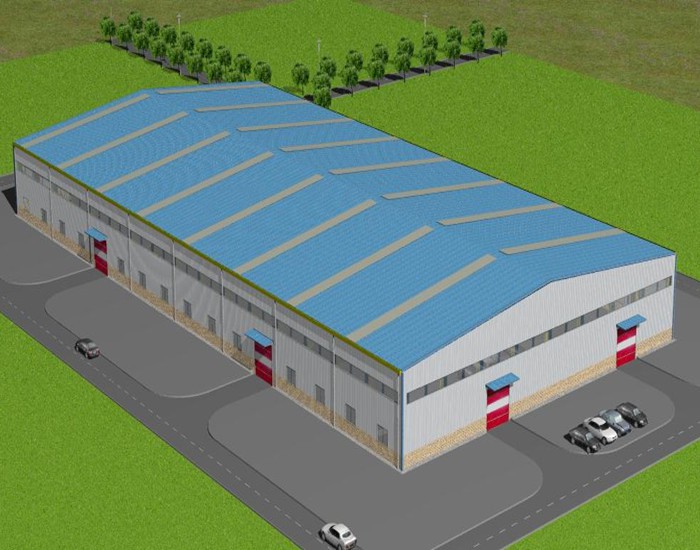

Project Solution: 50×100m Steel Warehouse With Crane Solution for DR Congo

Building Size: 100m (L) × 50m (W) × 9m (H)

Total Area: 5,000 sqm

Project Location: Lubumbashi, DR Congo

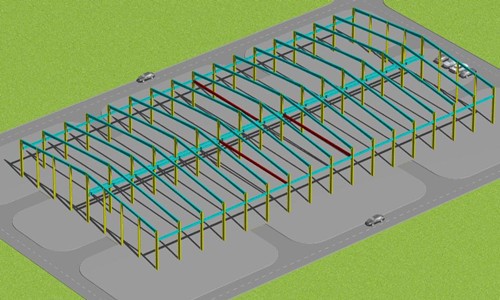

Structural Layout: Double Span

Crane System: 3 Sets of 10 Ton Overhead Cranes

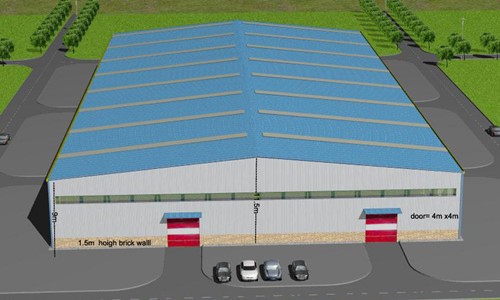

Wall System: 1.5m brick wall + steel cladding

Roof System: Metal Roofing Panels

Application: Industrial Storage & Equipment Handling

Case Story: 50x100m Steel Warehouse With Crane Proposal for DR Congo

A customer in Lubumbashi, DR Congo operates an industrial materials and equipment business, serving local mining and construction projects. As business increased, the customer needed a larger warehouse facility capable of handling heavy steel products and mechanical equipment, specifically required a warehouse building with integrated overhead crane systems to improve internal loading and unloading operations.

Challenges Faced by the Client:

Existing warehouse lacked heavy lifting capability

Manual cargo handling reduced operational efficiency

Need for larger internal working space

Requirement for reliable crane-supporting structure

Concern about long construction period using concrete buildings

Need to reduce maintenance and long-term operating costs

Our Professional Solution

After understanding the customer's operational requirements, our engineering team proposed a 50x100 prefabricated steel warehouse solution with integrated crane beam systems.

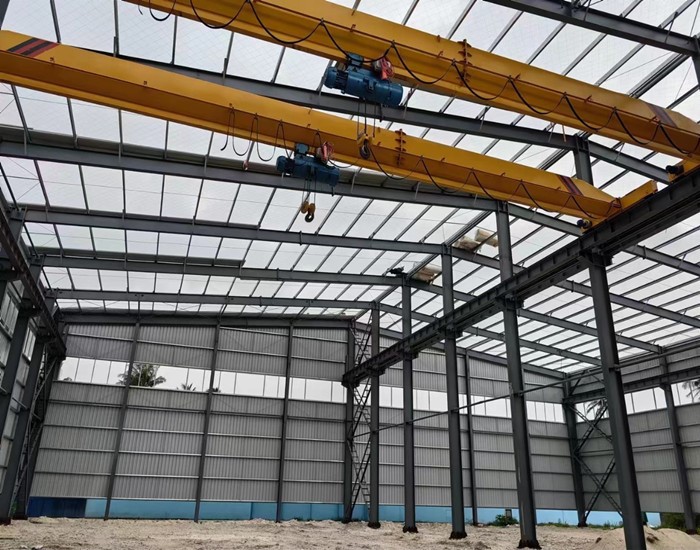

The building adopts a double-span structural layout to create larger usable interior space while optimizing steel consumption and structural stability. Three 10-ton overhead cranes were incorporated into the structural design to support efficient heavy cargo movement across different working zones inside the warehouse.

The 9m building height was designed to provide sufficient lifting clearance for crane operations and industrial equipment handling.

To improve durability under local environmental conditions, the lower wall section uses a 1.5m brick wall combined with steel wall cladding panels. This design helps protect the building from accidental impact, moisture, and daily industrial operations.

Our engineering team also optimized crane beam connections, column reinforcement, and container loading plans to ensure safe operation and efficient overseas shipment.

Technical Specification for the 50x100 steel structure warehouse with crane:

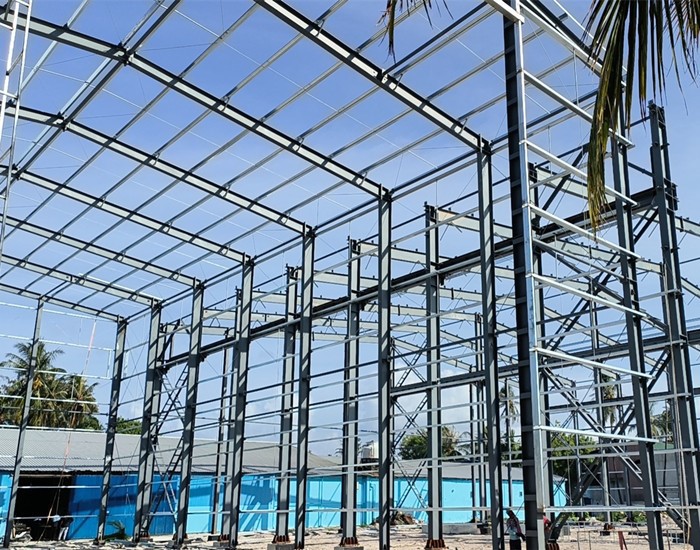

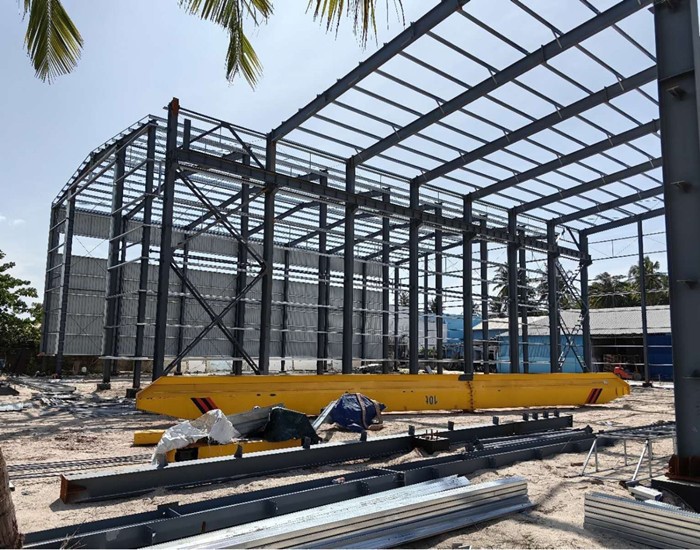

Our Overseas Project Cases for the Warehouse with Crane:

Who else need this 50x100 steel warehouse with cranes design?

This 50x100m double-span overhead crane solution is a model of a "modern heavy industrial workshop," ideally suited for:

Mining-rich African countries (such as Zambia, Guinea, and Ghana): Highly adaptable to mining environments characterized by heavy loads, sandstorms, and a lack of on-site welding workers.

Global heavy engineering equipment manufacturers: Companies requiring both large-tonnage lifting and large-area storage capabilities.

Why Choose Honstar for Your Heavy Duty Steel Warehouse Projects?

Beyond Manufacturing: Honstar Offers Turnkey Project Solutions

1. Professional Custom Design

Traditional steel structure companies often only work on the building itself, neglecting the dynamic impact of cranes. Honstar engineers used Tekla Structures and advanced finite element analysis software to simulate the steel structure and crane tracks as a unified "dynamically coupled system." We performed fatigue life calculations on every bracket and every high-strength bolt joint to ensure the safe operation of the building.

2. Integrated Supply Chain for Construction and Machinery

By sourcing through Honstar, you no longer need to deal separately with construction companies and crane manufacturers. We provide a unified supply of high-strength main steel frames, gantry beams, a complete 10t bridge crane, safety conductor rails, current collectors, and control systems. All materials are perfectly compatible and shipped together in a ship.

3. Advanced Steel Fabrication Factory

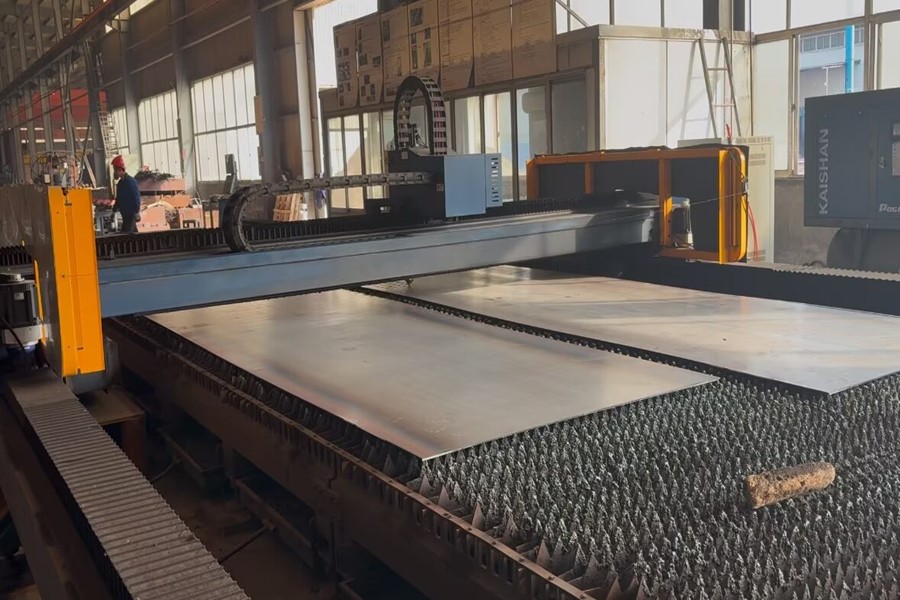

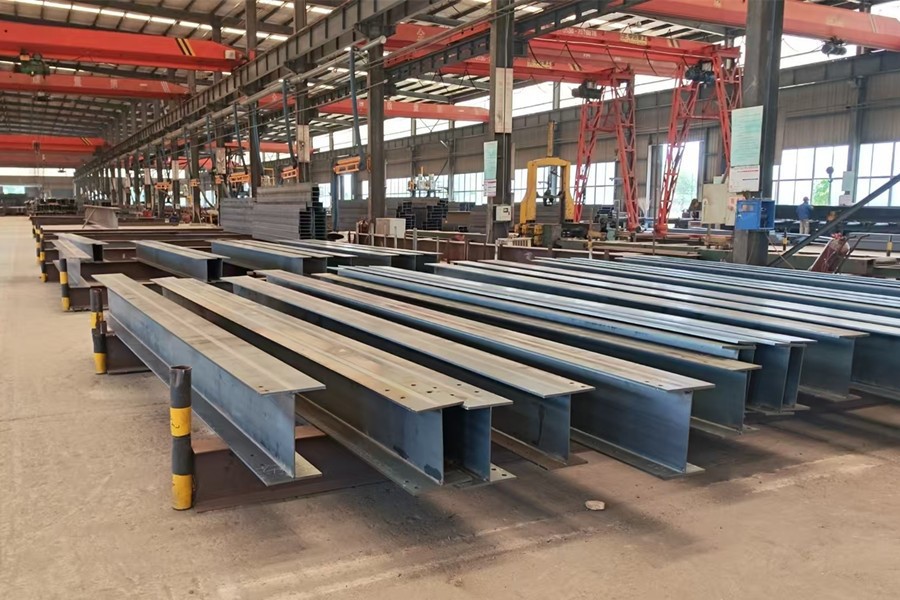

Our steel structure manufacturing factory covers 177,000 sqm and includes advanced automated production lines for heavy steel, light steel, and industrial steel buildings. The factory is equipped with CNC cutting machines, submerged arc welding systems, shot blasting equipment, and automated H-beam assembly lines. All steel structure production follows ISO, BV, SGS, and CE quality standards.

4. Professional Packaging for Shipping

Our export engineering team optimizes packing and container loading plans based on project size and destination requirements. This helps reduce shipping cost and improve loading efficiency for overseas projects.  In addition, we use steel pallets for easy loading and unloading.

5. Global On-Site Installation Guidance

With 12 years of overseas engineering experience, our team has provided steel structure building solutions for clients across Africa, Southeast Asia, the Middle East, and South America. We understand the practical needs of overseas warehouse projects in different climates and market environments.

We not only provide detailed installation drawings for overseas clients, but for large or complex projects, we can assign installation engineers to overseas construction sites, provide on-site guidance and technical supports.

FAQ

Q1: What are the different requirements for the main steel columns of a warehouse with overhead crane? Can it be added later?

A: The difference is huge. The cross-sectional dimensions, steel plate thickness, and foundation bolt specifications of the steel columns equipped with a 10-ton crane are much larger than those of a regular warehouse. If you plan to add an overhead crane in the future, you must calculate the crane load and reserve brackets in the current design phase; otherwise, the main steel frame will not be able to withstand the enormous dynamic tensile forces later.

Q2: Will the central column in a 50m wide double-span design affect the operation of the overhead crane?

A: Absolutely not. As shown in the image "steel warehouse with crane.jpg," the double-span design means that we divide the 50m wide space into two parallel 25m wide crane aisles. The left and right spaces each operate independently with a 10-ton overhead crane. The central column serves as both the building support and the load-bearing column for the central track. This is the safest and most economical heavy-duty factory layout.

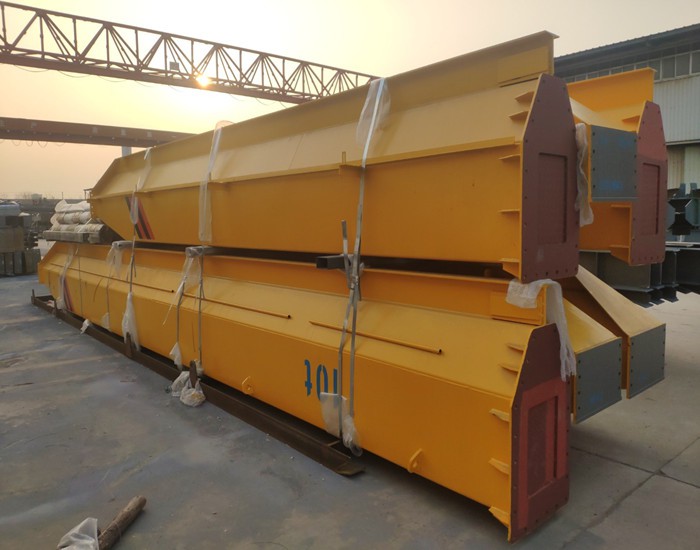

Q3: Does your shipment include three 10-ton cranes? Are they easy to assemble locally?

A: Yes, Honstar provides a complete set of equipment, including three 10-ton cranes. The crane's main beam, hoist, motor, and control box all adopt an industrial modular design. We will provide a one-to-one electrical wiring diagram and mechanical assembly video, showing all bolt and screw splicing, making overseas on-site assembly extremely clear.

Q4: How are the 1.5m high brick wall and the crane's steel columns connected?

A: Our heavy-duty steel columns are directly anchored to a reinforced concrete independent foundation. The 1.5m high brick wall is built between the main columns and locked to the steel columns by tie bars or pre-embedded connectors. This hybrid design ensures that the brick wall is both an independent impact and moisture-proof wall and seamlessly integrated with the main steel structure.

Q5: How does the steel structure warehouse building cope with the hot and rainy climate of Congo?

A: Our steel components undergo high-standard rust removal and multi-layer heavy-duty anti-corrosion paint coating, effectively resisting the moisture of the tropical rainy season. Meanwhile, in the roof design, we use a large-diameter, high-flow-rate external gutter drainage system, and can install self-powered turbine ventilators on the roof to ensure the factory interior is completely leak-proof during heavy rain and maintains air circulation even in the sweltering heat.

Start Your Projects With Honstar

If you are considering building a steel structure warehouse with cranes, please share your project details with us, and we will provide a tailored solution based on real project experience.
