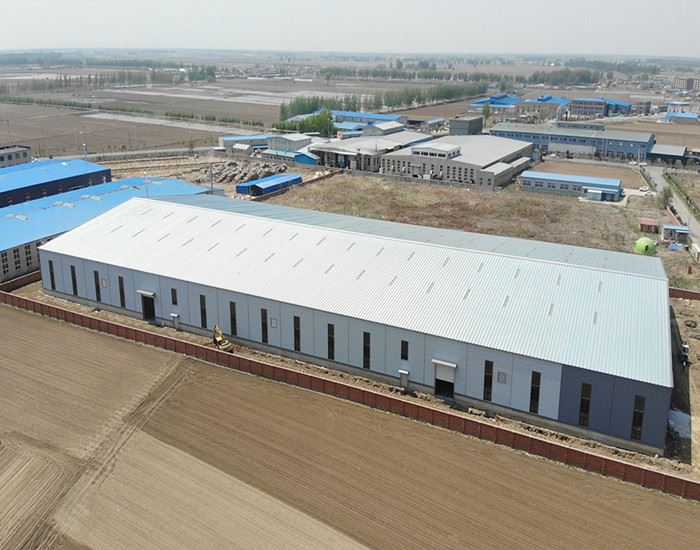

Steel Structure Workshop for Industrial Manufacturing
A steel structure workshop is a modern industrial building system constructed with high-strength steel columns, beams, and roof purlins, designed for manufacturing, assembly, repair, and industrial production activities. Compared with traditional concrete buildings, steel workshops offer faster construction speed, larger usable span, and lower long-term maintenance cost.
Key Features & Advantages:
Rapid ROI and fast assembly: Precision factory cutting processes allow for perfect fitting of components using high-strength bolts, reducing on-site construction time by up to 50%.
Exceptional cost-effectiveness: Tapered H-beams use structural steel only where stress is greatest. This reduces total steel tonnage, thereby lowering shipping costs and overall material investment.
Structural durability: High-grade steel structures have superior resilience and seismic resistance compared to rigid, fragile concrete frames.
Longitudinal scalability: Structural end walls are pre-calculated to accommodate future expansion needs. Extending a 180-meter-long building to 220 meters or longer can be easily achieved.
Common Applications:
Steel structure workshop buildings are widely used in: Manufacturing plants & assembly workshops, Automotive repair and maintenance centers, Steel fabrication workshops, Agricultural machinery production, Logistics & warehousing integrated workshops.
Honstar provides customized steel structure workshop solutions for global markets, has over 12 years of overseas engineering experience. We provides full turnkey steel workshop solutions including design, fabrication, packing, shipping, and overseas installation guidance.

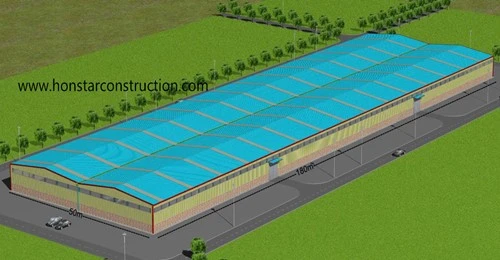

Mozambique 50×180m Steel Structure Workshop Solution
In Mozambique, industrial development and manufacturing demand are growing rapidly, especially in coastal and logistics-driven cities. To support a local manufacturing client, Honstar designed a 50×180m double-span steel structure workshop, optimized for both production efficiency and future crane installation.
Technical Parameters
| Structural Component | Optimized Specifications (Mozambique Project Layout) |
| Total Covered Area | 9,000㎡ (96,875 sqft) |

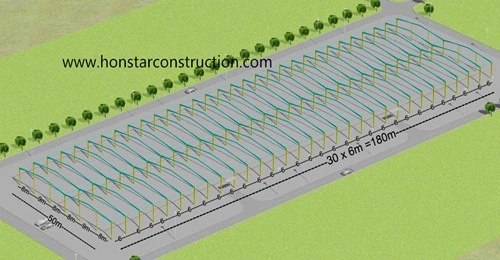

| Physical Dimensions | 50 meters Wide × 180 meters Length (30x6m column bays) |
| Height Matrix | 6 meters Eave Height (Cost-effective clearance for manufacturing & logistics) |
| Frame Configuration | Double-Span Layout (25m + 25m Portal Frames with a central column row) |
| Wall Envelope Integration | Engineered for a 2.0-meter-high perimeter masonry brick wall. |
| Drainage Infrastructure | Heavy-duty internal central valley gutter system with high-flow downspouts. |
| Lifting Options | Optional Customization: Fully customizable to integrate overhead bridge cranes. |
The Design Features:
High-stability double-span structure: The 50-meter-wide building utilizes a double-span portal frame system (25 meters + 25 meters). By introducing a row of vertical columns along the 180-meter axis, internal bending stress is halved, ensuring the robust stability of the 9,000-square-meter building while significantly saving material costs.

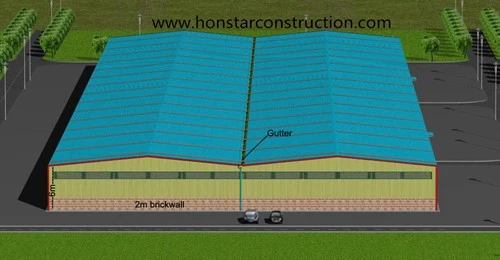

2m high brick wall: In Mozambique, this wall effectively resists intrusion, protects the lower part of the building from the impact of industrial vehicles, and effectively prevents localized seasonal flooding. Precast metal cladding is directly connected to the 2-meter-high brick wall.
Customized crane integration capability: While this standard 50x180m prototype is configured as an efficient, crane-free manufacturing layout, we can completely re-engineer this plan for crane functionality. If your business requires high-altitude lifting, our technical team will upgrade the structural columns, calculate dynamic fatigue limits, and integrate factory-welded crane supports and beams to meet your specific lifting specifications.
Tropical Engineering for Mozambique's Local Environment
Operating in East Africa requires specific engineering measures to address extreme weather and environmental patterns:
1. Central Drainage System: Mozambique is prone to intense tropical storms and hurricanes, which can quickly destroy ordinary roofs.
Solution: We integrate an oversized, heavy-duty galvanized central internal gutter system complete with high-diameter, high-frequency downspouts. This ensures that thousands of liters of rainwater can be immediately drained from the 9,000 square meter roof, eliminating water accumulation, backflow, or roof leaks.
2. Hurricane-Force Wind Load Reinforcement: Mozambique's long coastline is frequently subjected to strong tropical cyclones from the Indian Ocean.
Solution: The main structural steel columns and rafters are constructed using high-strength Q355B steel. Combined with a reinforced cross-bracing matrix installed along a 30m x 6m frame sequence, the facility effectively withstands extreme wind pressure.
3. Advanced Foundation Solutions for Different Soil Conditions, Effectively Reducing Costs
Many industrial areas along the Mozambique corridor have sandy or low-bearing-capacity clay soils. Constructing heavy concrete buildings in these areas would face high costs for foundation piling.
Solution: High strength, lightweight prefabricated steel structures (PEB) can reduce the overall self-weight of a building by up to 35% compared to traditional concrete frames. This significantly reduces downward vertical forces, savings on concrete and site preparation costs.
Our installation guidance on overseas construction site:
Who else need this 50x180 steel structure workshop design?
This 9,000㎡ steel structure workshop is also widely used in: Kenya industrial zones, Tanzania manufacturing parks, Nigeria heavy industry workshops, Ghana steel fabrication factories, Angola logistics workshops and Middle East industrial zones (Oman, UAE).
It is especially suitable for:
Manufacturing companies expanding production capacity
Engineering contractors building fabrication yards
Logistics companies requiring large sorting + processing space
Industrial investors in emerging markets
Why Choose Honstar's Steel Structure Workshop Buildings?
Honstar Construction has over 12 years of overseas steel structure project experience with professional engineering support covering design, detailing, fabrication, export logistics, and overseas installation. We can do turnkey projects for clients worldwide.
1. Professional Steel Structure Engineering Team
Our technical team can support the whole process of building a project, our engineering team includes: Architectural engineers, Structural engineers, Tekla detailing engineers, Export packing engineers and Overseas installation engineers.
We can provide complete customized warehouse solutions according to local climate, usage requirements, and project budgets.
2. Advanced Steel Structure Manufacturing Factory
Our steel structure manufacturing factory covers 177,000 sqm and includes multiple production lines for heavy steel, light steel, space frame, and enclosure systems. The factory is equipped with CNC cutting machines, submerged arc welding systems, shot blasting equipment, and automated H-beam assembly lines. All steel structure production follows ISO, BV, SGS, and CE quality standards.
3. Professional Packaging for Shipping
Our export engineering team optimizes packing and container loading plans based on project size and destination requirements. This helps reduce shipping cost and improve loading efficiency for overseas projects. In addition, we use steel pallets for easy loading and unloading.
4. Global On-Site Installation Guidance Service
Each workshop is equipped with a comprehensive and easy-to-understand 3D installation guide. For large projects like this 9,000 square meters workshop, Honstar can send experienced installation engineers to your construction site to supervise and guide your local installation team.
FAQ
Q: How can a 50x180m double-span workshop be modified if we need to add a 10-ton crane later?
A: If you anticipate needing a crane, we recommend informing our engineers during the design phase so we can customize the layout in advance. During factory production, we will reinforce the column webs, increase the steel thickness, and weld a dedicated crane bracket (eaves) to the frame. We will also design and supply the running beams to ensure the crane can be installed immediately upon arrival at your factory.
Q: How does Honstar ensure the central gutter doesn't leak or overflow during a cyclone in Mozambique?
A: We use thick anti-corrosion galvanized steel sheets to fabricate a deep, wide gutter profile capable of handling high water volumes. We also increase the number and diameter of the vertical downspouts along the central column line, allowing water to drain away rapidly. All joints are sealed with professional-grade weather-resistant industrial sealant and waterproof baffles to ensure the system is completely leak-proof.
Q: What anti-corrosion treatment is used to protect the steel structure from coastal wind erosion?
A: We use a high-performance industrial coating system. All steel is first mechanically shot-blasted to SA 2.5 cleanliness standards to remove all rust and scale. Then, an epoxy zinc-rich primer is immediately applied, followed by a thick intermediate barrier layer and a durable polyurethane topcoat. For extreme marine or high-salinity environments, we can provide complete Hot-Dip Galvanization (compliant with ISO 1461 standards, zinc layer thickness exceeding 600 g/m²) to ensure longer service life and maintenance-free operation.
Start Your Projects With Honstar
If you are considering building a steel structure workshop building, please share your project details with us, and we will provide a customized solution based on real project experience.
