Prefabricated Steel Workshop With Cranes for Marine Operations

What is a prefabricated steel workshop with integrated cranes?

A prefabricated steel structure workshop is an advanced structural solution utilizing prefabricated building (PEB) technology. These buildings are designed to maximize internal vertical space, employing high-strength Q355B steel frames and manufactured in a rigorous CNC factory environment. When heavy industrial lifting operations are required, the building structure is pre-designed as a monolithic system, with columns reinforced by built-in crane supports (eaves), thus safely transferring the enormous dynamic and vertical loads of the bridge crane directly to the foundation pad.

Advantages of Modern Prefabricated Steel Workshops:

Unparalleled strength-to-weight ratio: Achieving large spans and extremely high vertical clearance while minimizing structural weight, thus significantly reducing concrete foundation usage.

Zero-welding structural bolt assembly: Utilizing high-strength 10.9 grade structural bolts, 100% pre-punching and pre-assembly are completed in the factory, avoiding the uncertainties of on-site welding.

Designed for heavy-duty automation: Capable of accommodating multiple single-girder or double-girder bridge cranes, it will not experience structural bending or misalignment even after decades of operation.

Seismic and weather-resistant plasticity: High-strength steel structures can dynamically bend under strong winds and earthquakes.

Honstar provides customized steel workshop buildings for global customers, with over 12 years of overseas engineering experience. We provides full turnkey steel workshop solutions including structural design, fabrication, crane integration, export packaging, shipping, and overseas installation guidance.

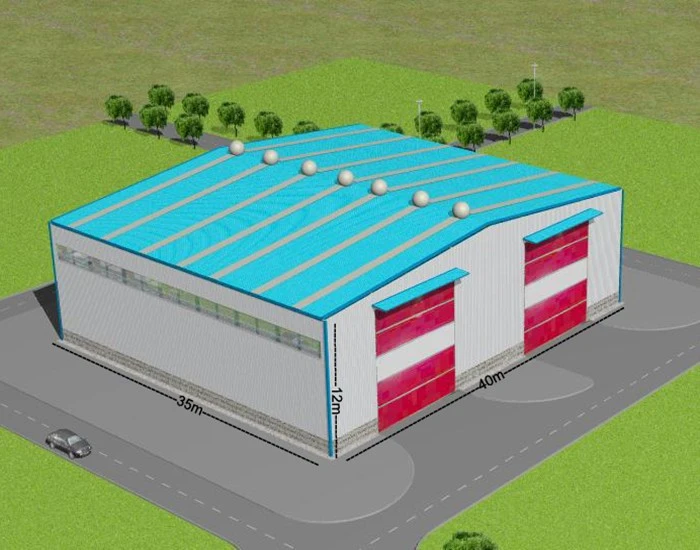

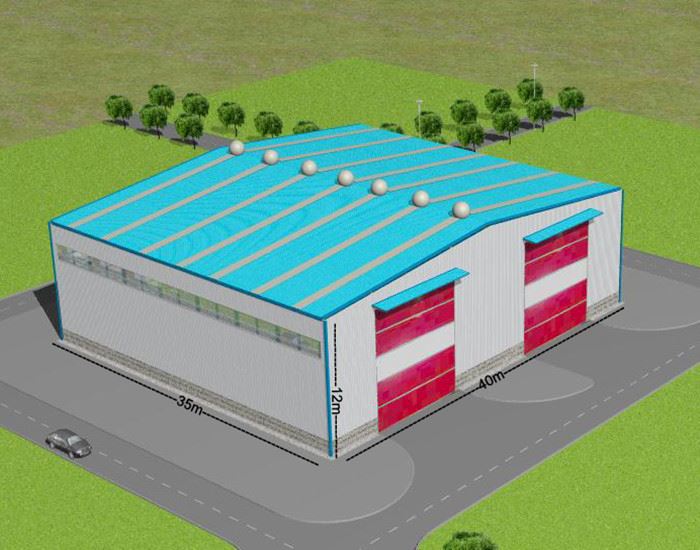

Case Study: Maldives 35x40m Prefabricated Steel Marine Workshop

This 1,400㎡ prefab steel workshop was commissioned by a Maldivian client specifically for repairing and maintaining marine vessels and ships.

The Design Features for the 35x40 prefab steel workshop:  Customized design for Marine Vessel Maintenance

12m Specialized Clearance: Due to the height of ships when out of the water in dry dock, standard industrial clearance is insufficient. Our design team customized a 12-meter clearance eaves height, ensuring that even when ships are supported on dry dock supports, the gantry cranes have sufficient vertical clearance to lift and avoid the tallest ship structures.

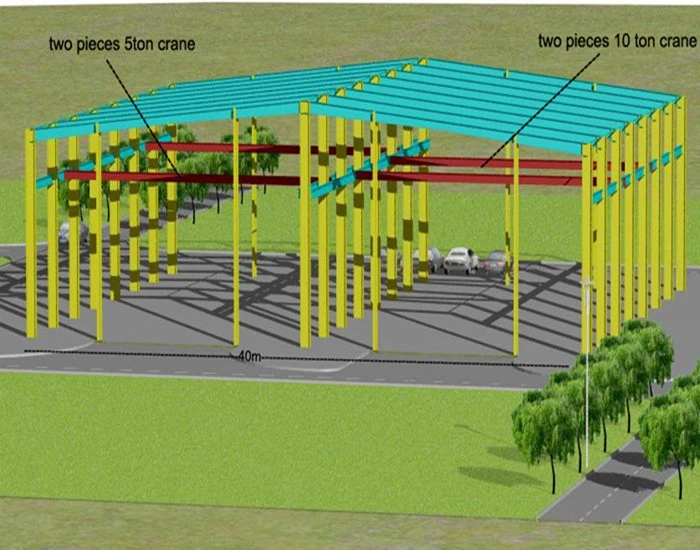

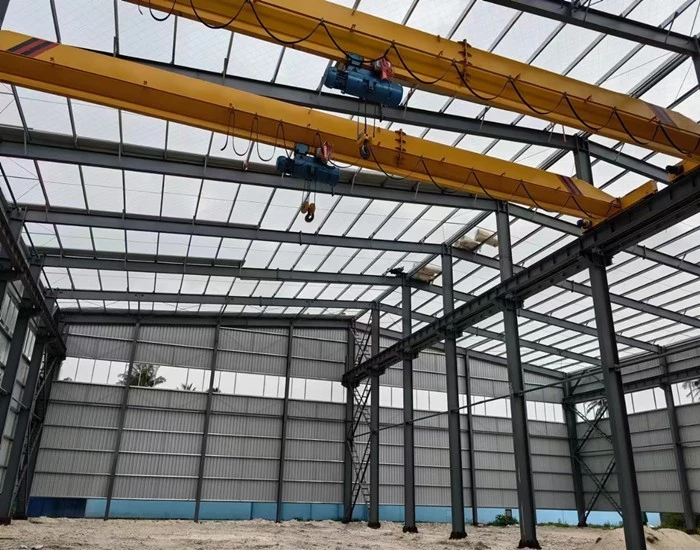

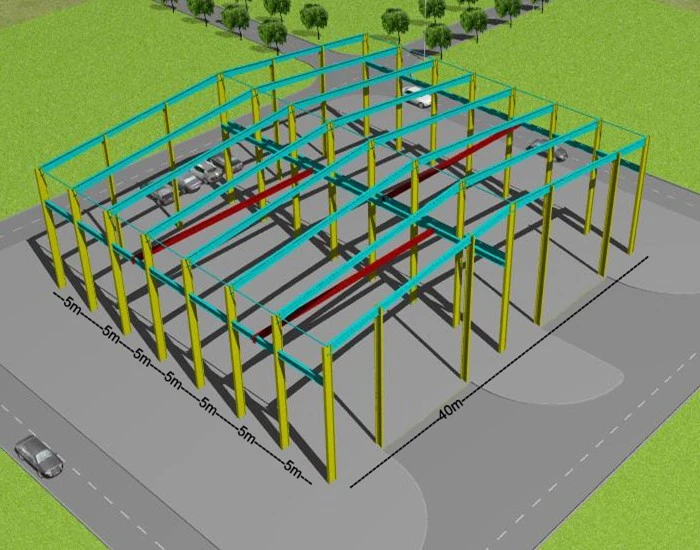

Multi-Crane Quadruple Lifting: A double-span frame with custom-welded crane beams and columns supports a high-density lifting system: two 10-ton gantry cranes and two 5-ton gantry cranes. This allows multiple maintenance teams to perform engine dismantling, hull replacement, and large component movement within parallel docks without interfering with each other.

1.5m High Integrated Protection Wall: The building frame includes a 1.5-meter high brick wall encircling the entire perimeter. This provides a hard anti-collision barrier against heavy shipyard machinery and protects the building's lower perimeter from seasonal coastal tides.

Professional Solution Special for island: Solving the Maldives' Environmental Extremes

Building in an island nation like the Maldives presents strict logistical and climatic challenges that Honstar successfully solved:

1. Advanced C5-M Marine Anti-Corrosion (Salty Sea Air Mastery)

The marine environment in the Maldives is harsh, with high humidity and continuous salt spray, which can corrode ordinary steel within months.

Solution: Each structural steel piece undergoes mechanical shot blasting to achieve a near-white metal cleanliness level of SA 2.5, thoroughly removing oxide scale. Afterward, a high-grade epoxy zinc-rich primer system is applied, followed by an epoxy intermediate coat and a durable polyurethane topcoat. This C4/C5-M grade coating ensures a long rust-resistant service life near the sea.

2. Strong Wind and Typhoon Resistance

As an island nation located in open water, the facility must be able to withstand severe tropical storms and strong open ocean winds.

Solution: Utilizing high-strength Q355B steel and employing an advanced multi-layered cross-bracing structure on the roof and side walls, certified to withstand wind speeds up to 150 mph, ensuring the facility remains safe even during severe tropical storms.

3. Honstar's One-Stop Turnkey Project Service

Logistics is often a bottleneck for international projects, particularly those on remote islands.

Solution: Honstar acts as the general contractor, handling the entire process. We take care of everything: customized Tekla 3D structural engineering, factory production, loading components into optimized shipping containers, ocean freight logistics, and final on-site assembly guidance. This single-responsibility model saves clients months of communication costs and avoids costly on-site installation delays.

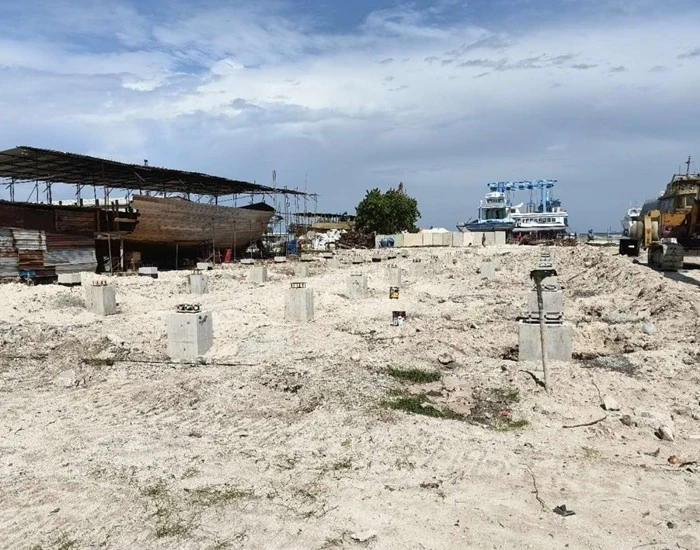

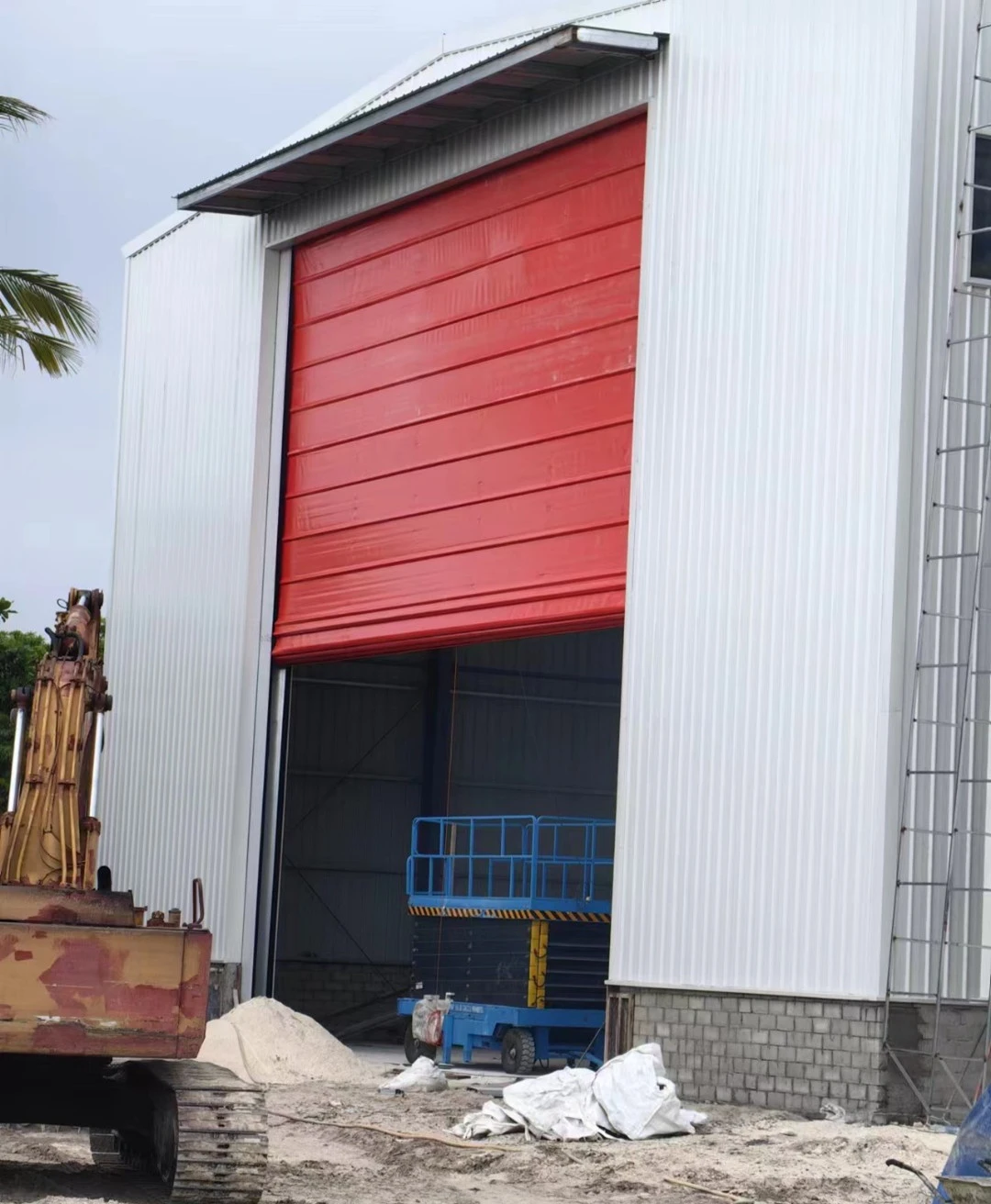

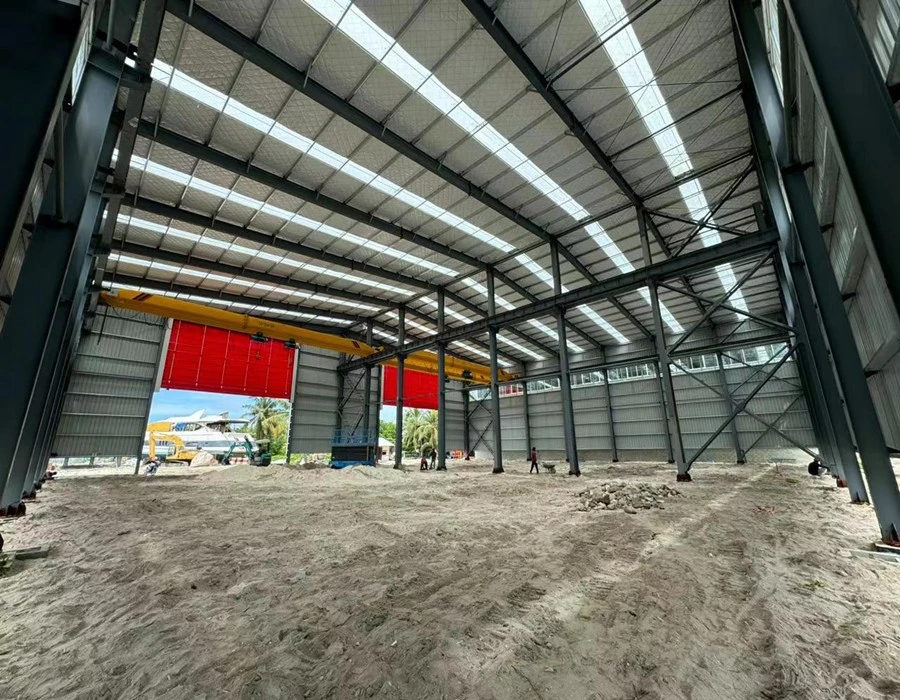

Our installation service on Maldives' construction site:

Who else need this 35x40 prefab steel workshop solution?

This robust, high-clearance crane workshop design is highly scalable and perfect for procurement managers managing similar operations globally:

Pacific and Caribbean Island Nations: (e.g., Fiji, Papua New Guinea, Bahamas, Mauritius) where shipyard maintenance facilities require heavy lifting setups combined with premium marine-grade anti-corrosion.

Global Coastal Port Cities: (e.g., Singapore, Dubai, Panama, Rotterdam industrial zones) for rapid deployment of modular shipyard or logistics repair terminals requiring multi-crane setups.

Why Choose Honstar for Your Pre Engineered Workshop Projects?

Honstar Construction has over 12 years of overseas steel structure project experience with professional engineering support covering design, detailing, fabrication, export logistics, and overseas installation. We can do turnkey projects for clients worldwide.

1. Professional Steel Structure Engineering Team

Our technical team can support the whole process of building a project, our engineering team includes: Architectural engineers, Structural engineers, Tekla detailing engineers, Export packing engineers and Overseas installation engineers.

We can provide complete customized warehouse solutions according to local climate, usage requirements, and project budgets.

2. Advanced Steel Structure Manufacturing Factory
Our steel structure manufacturing factory covers 177,000 sqm and includes multiple production lines for heavy steel, light steel, space frame, and enclosure systems. The factory is equipped with CNC cutting machines, submerged arc welding systems, shot blasting equipment, and automated H-beam assembly lines. All steel structure production follows ISO, BV, SGS, and CE quality standards.

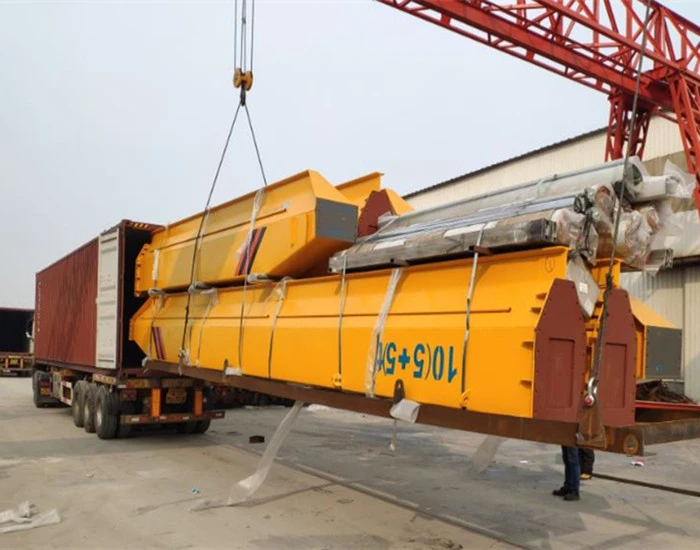

3. Professional Packaging for Shipping

Our export engineering team optimizes packing and container loading plans based on project size and destination requirements. This helps reduce shipping cost and improve loading efficiency for overseas projects.  In addition, we use steel pallets for easy loading and unloading.

4. Global On-Site Installation Guidance Service

With 12 years of overseas engineering experience, our team has provided steel structure building solutions for clients across Africa, Southeast Asia, the Middle East, and South America. We understand the practical needs of overseas warehouse projects in different climates and market environments.

We not only provide detailed installation drawings for overseas clients, but for large or complex projects, we can assign installation engineers to overseas construction sites, provide on-site guidance and technical supports.

FAQ

Q: How does Honstar calculate the building frame to safely support two 10-ton and two 5-ton cranes simultaneously?
A: This was achieved through sophisticated structural calculation software. Our technical team didn't simply place the cranes on a standard frame. We increased the web and flange thickness of the high-strength Q355B main columns, integrated factory-welded crane supports, and installed high-rigidity crane rail beams. We calculated the extreme case of multiple cranes simultaneously operating at full load and braking to ensure the building could safely withstand all vertical loads, lateral forces, and longitudinal thrust without structural fatigue.

Q: Why is a 12-meter height necessary for a shipyard workshop, and can it be adjusted for other uses?

A: A 12-meter eave height was custom-designed for this Maldives case to accommodate the specialized vertical height of ships resting on dry-dock repair cradles. For other industries, this height can be adjusted. If you are building a logistics warehouse or a standard manufacturing assembly plant, we can optimize the height to 6 meters, 8 meters, or 10 meters based on your specific space and budget requirements.

Q: How does Honstar ensure the steel structure doesn't rust in high-salinity island environments like the Maldives?

A: Marine anti-corrosion is a core specialty at Honstar. We perform a thorough mechanical shot-blasting to SA 2.5 standards to ensure the steel is completely free of impurities. We then apply an advanced coating system consisting of an Epoxy Zinc-Rich Primer, an epoxy micaceous iron oxide intermediate layer, and a high-durability polyurethane topcoat. For structures built right on the water, we also offer complete Hot-Dip Galvanization(compliant with ISO 1461, with a heavy zinc coating thickness exceeding 600g/m2) to guarantee a 30+ year service life.

Q: What does Honstar's "One-Stop Turnkey Service" cover for international projects?

A: Our turnkey EPC contracting model removes all friction from international purchasing. It includes complete structural and architectural layout design, manufacturing, high-grade surface coatings, complete hardware and accessories procurement, optimized shipping container loading, and customs documentation.Furthermore, we provide comprehensive installation guidance, including complete Tekla installation blueprints and on-site support, to help your local construction team complete installation quickly and safely.

Start Your Projects With Honstar

If you are considering building a pre engineered workshop building, please share your project details with us, and we will provide a customized solution based on real project experience.
