Office Building Construction

Commercial Steel Office Building Construction Services



Are you looking for a reliable international contractor to handle your next office building construction project?  Modern commercial development requires more than just the supply of raw steel – it also requires precise structural engineering, seamless supply chain management, and rigorous on-site installation management.



With over 12 years of global contracting and engineering experience, Honstar Construction provide world-class commercial steel structure construction services. From initial structural calculations and foundation drawing alignment to automated factory prefabrication and overseas on-site assembly guidance, we offer a complete, risk-free turnkey EPC construction process that can shorten your project timeline by up to 50% compared to traditional reinforced concrete structures.

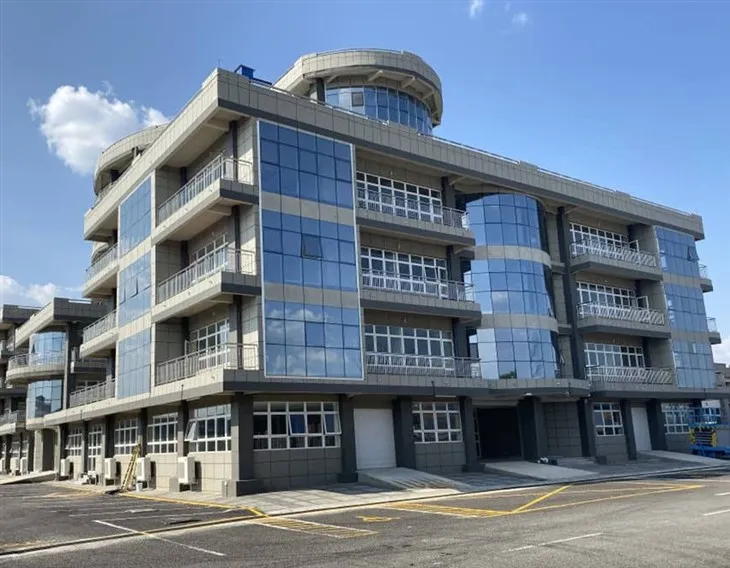

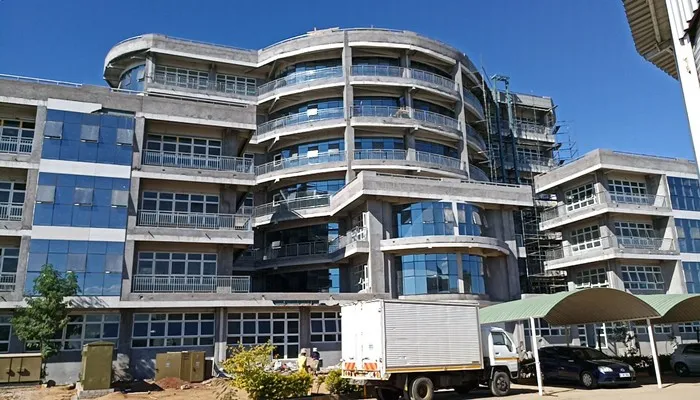

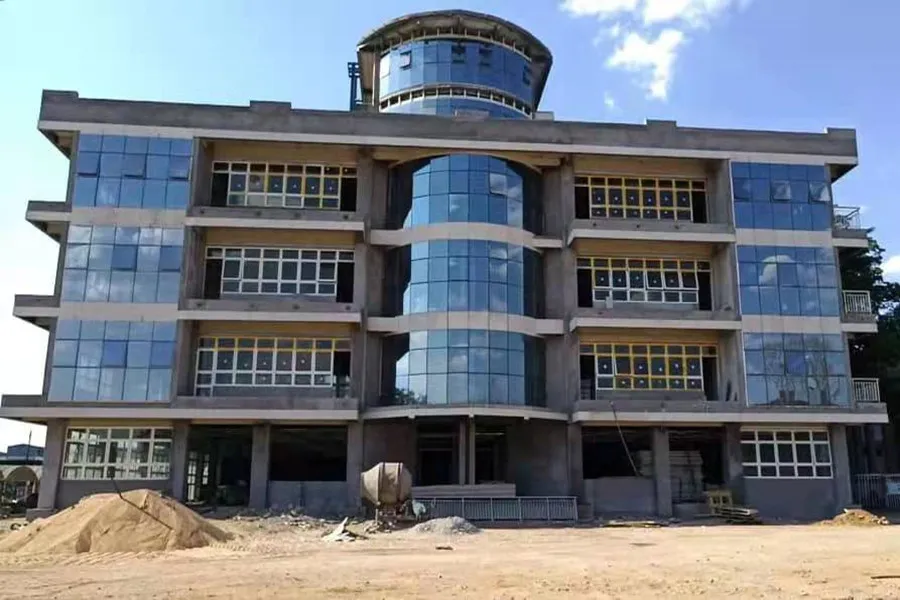

Case Study: The 8-Storey Steel Office Building Construction in Botswana



To demonstrate our ability to execute complex multi-story commercial infrastructure projects, here are the construction details of our landmark project in Botswana, Africa:

Project Site: 65m (L) × 35m (W) × 8 stories (H)

Construction Type: Precast heavy-duty steel multi-story commercial frame.

Project Challenges:

Optimizing structural calculations to handle the heavy dynamic floor loads of corporate office buildings and high-density interior partitions.

Designing high-capacity, integrated vertical shafts for multi-story commercial elevator systems.

Coordinating multi-story logistics to safely transport heavy-duty, high-precision Q355B steel columns to an international port.

Installation Outcome: Achieving zero-error on-site structural assembly through 100% bolted connections, eliminating the need for complex on-site welding.



The 5 Phases of Pre-Engineered Steel Office Construction



Unlike traditional slow concrete pouring, Honstar's prefabricated steel structures utilize high-speed, mechanized, and modular on-site assembly. Our standardized construction process seamlessly integrates across five key phases:



Phase 1: Structural Engineering & Detail Drawing (PKPM / Tekla)

Before cutting any beams or columns, our structural engineering team creates complete foundation, architectural, structural, and MEP (mechanical, electrical, plumbing) blueprints. We use Tekla Structures (Xsteel) software to generate a high-precision 3D digital twin model of your office building to ensure that every pre-drilled bolt hole aligns perfectly on site.

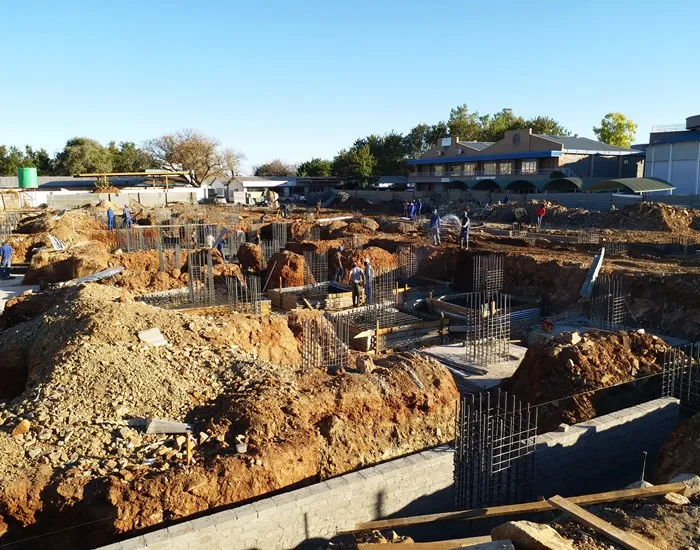

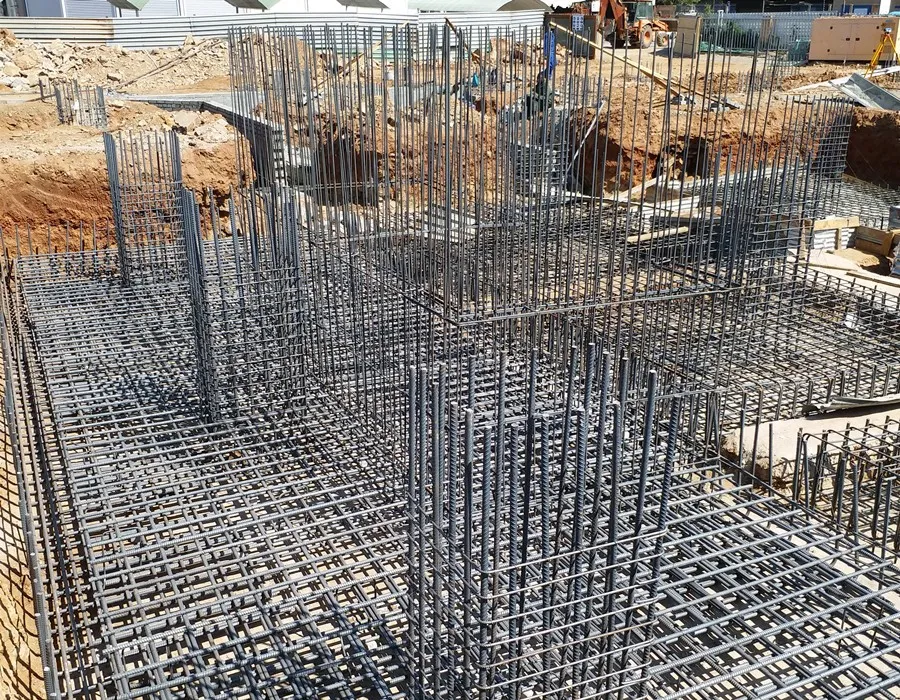

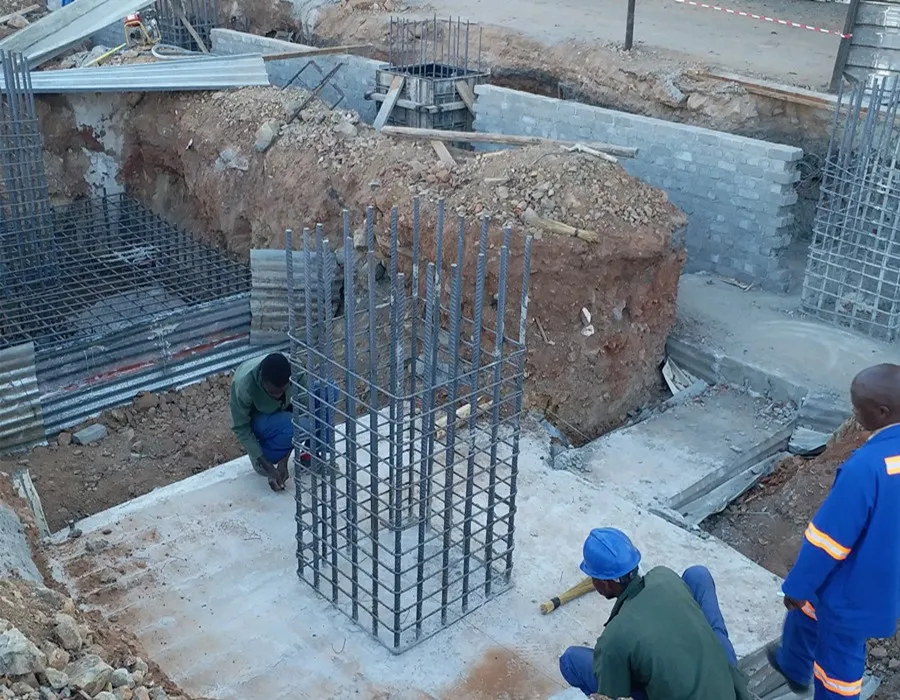

Phase 2: Civil Foundation & Anchor Bolt Installation

While your steel frames are being manufactured in our automated factory, your local construction team will prepare the civil engineering work for the concrete foundation. Honstar provides accurate foundation load calculations and anchor bolt layout diagrams. High-strength anchor bolts will be pre-embedded in the concrete piers to secure the main steel columns.

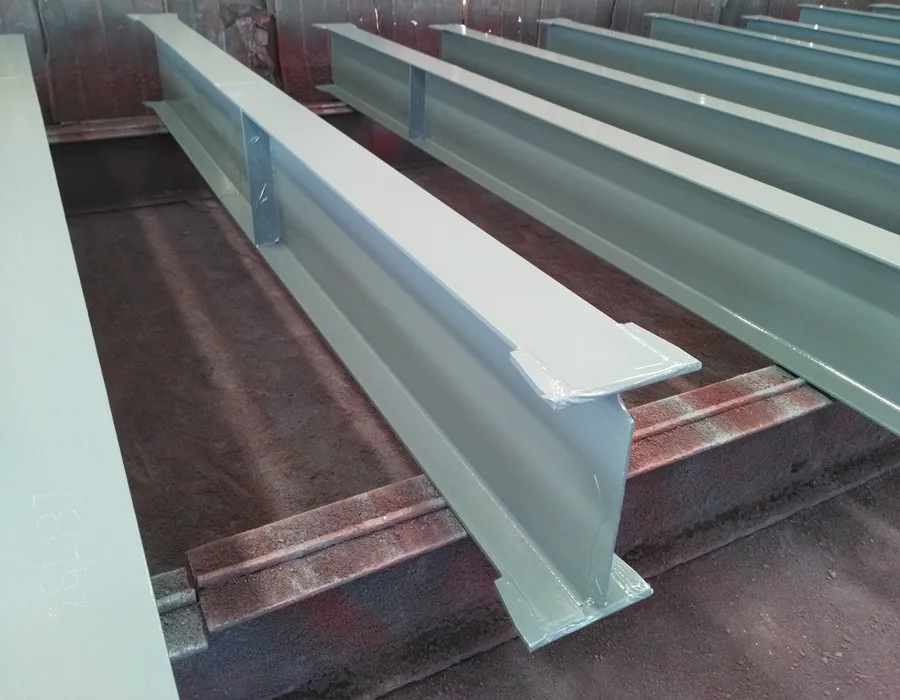

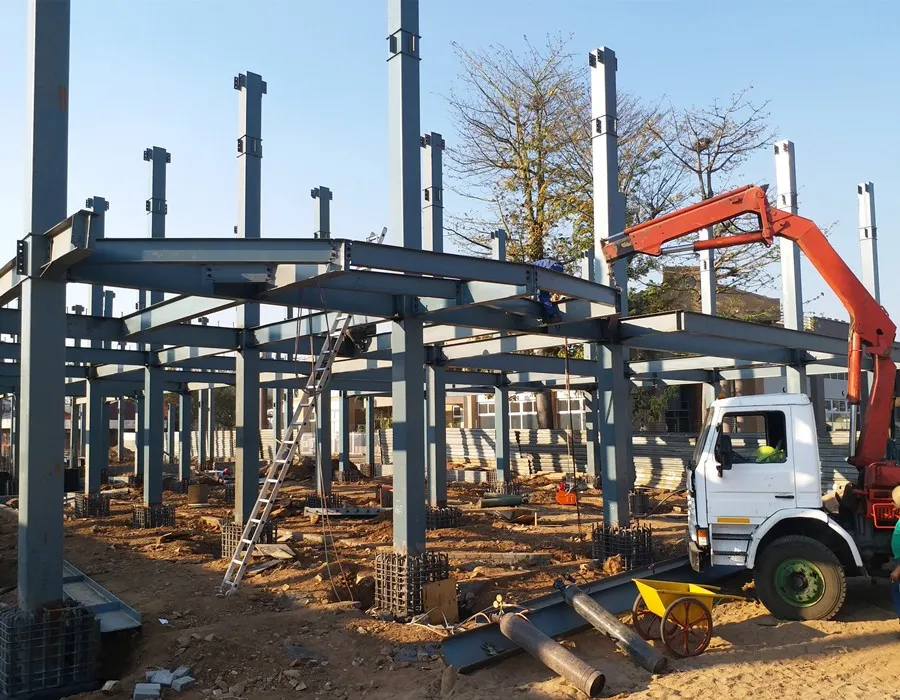

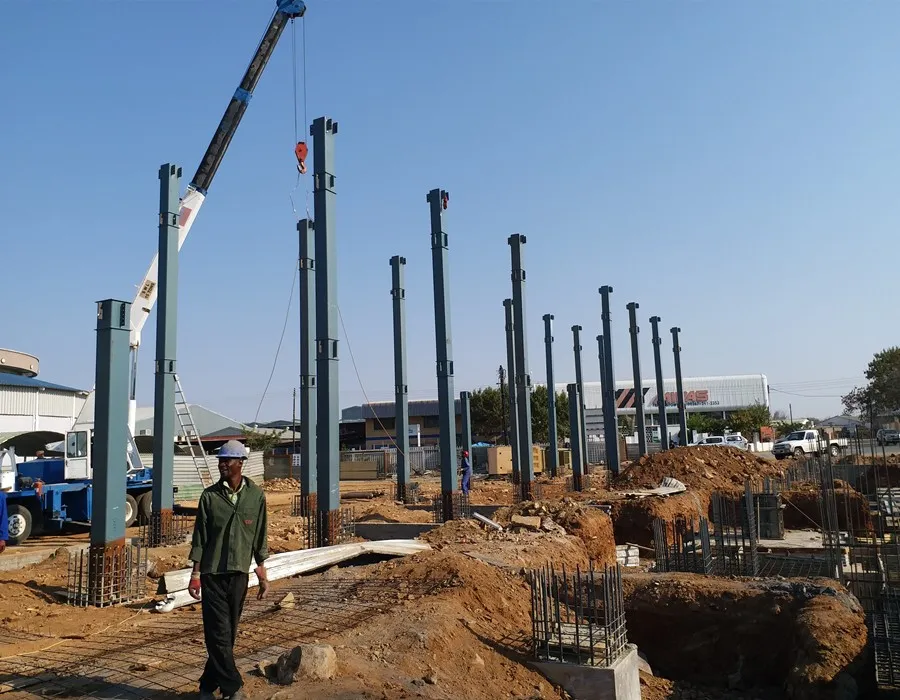

Phase 3: Main Structural Steel Frame (Columns and Beams)

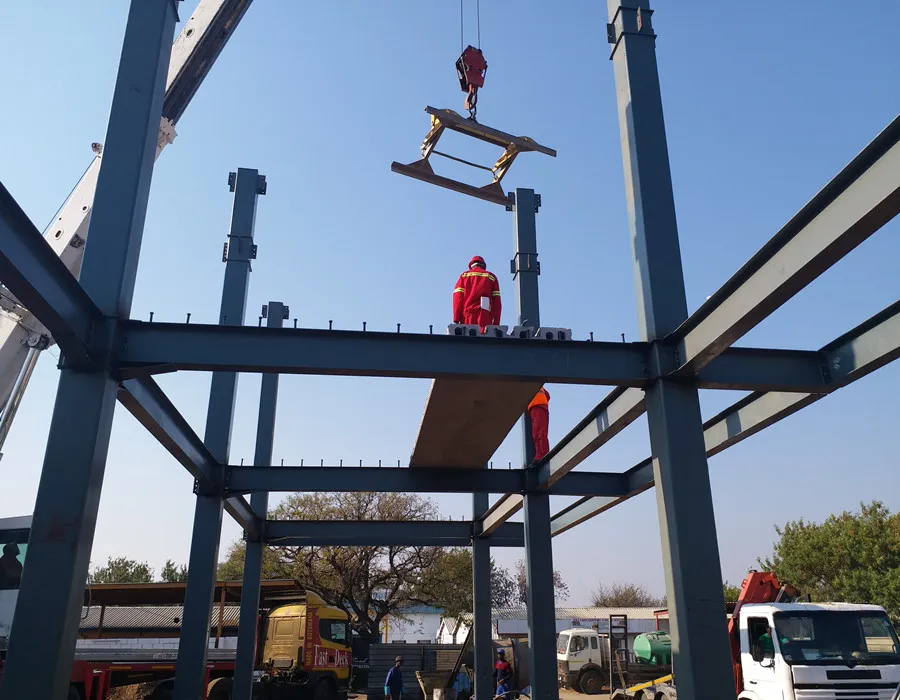

Once the material arrives, a heavy-duty steel crane begins hoisting operations.

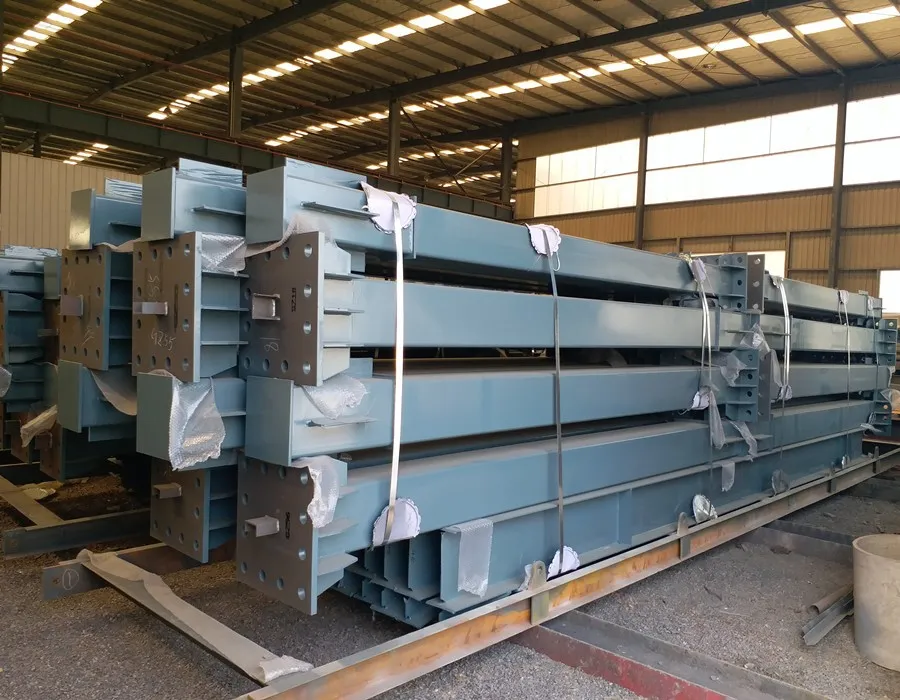

Main Columns and Beams: High-strength Q355B grade steel columns (equivalent to ASTM A572 / EN S355) are hoisted into place and securely anchored.

Tie Rods & Inter-column Bracing: Installed immediately to lock the main frame into a rigid, earthquake-resistant cage structure.

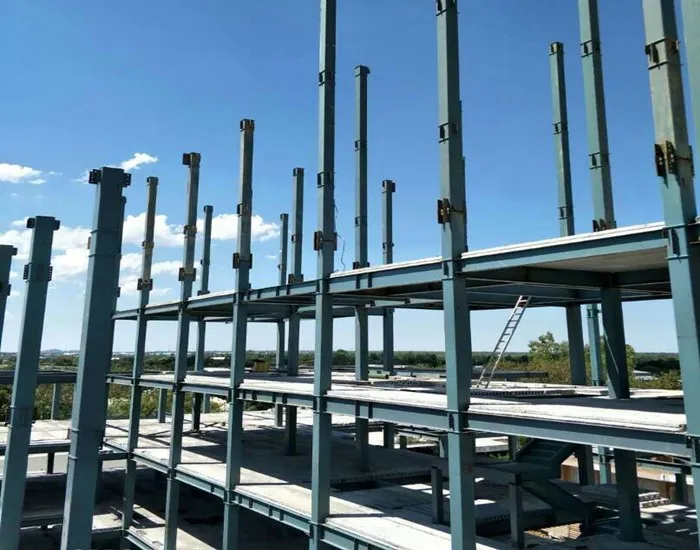

Phase 4: Secondary Framework & Floor Decking System

Purlins and Wall Beams: Galvanized C- or Z-shaped steel purlins are bolted to the roof and walls to support the exterior wall cladding.

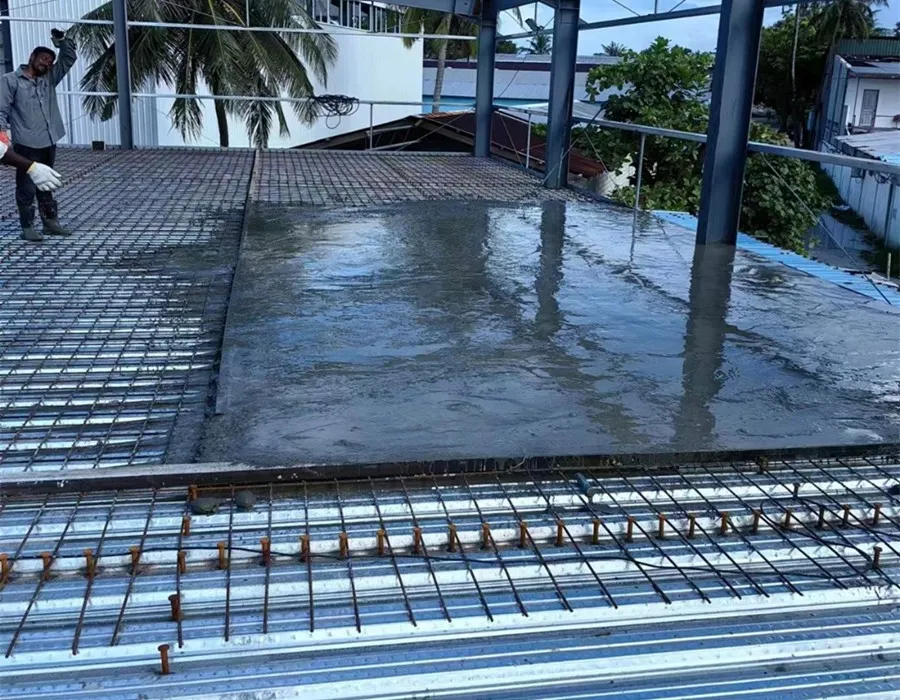

Multi-Floor Decking: High-load galvanized profiled steel floor decking sheets are laid on each floor, and welded structural wire mesh is installed. Finally, on-site poured concrete is used to create a robust, quiet, and high-load-bearing office floor.

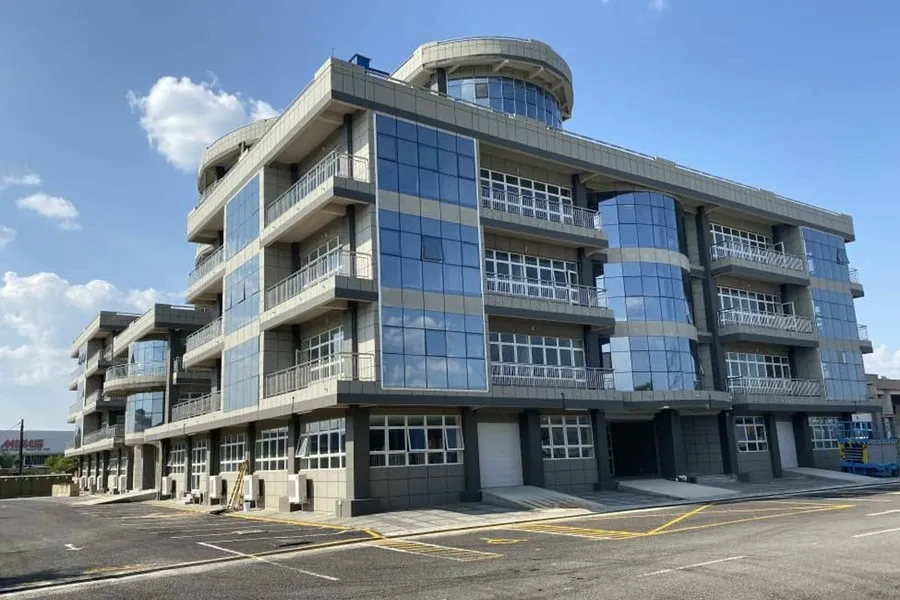

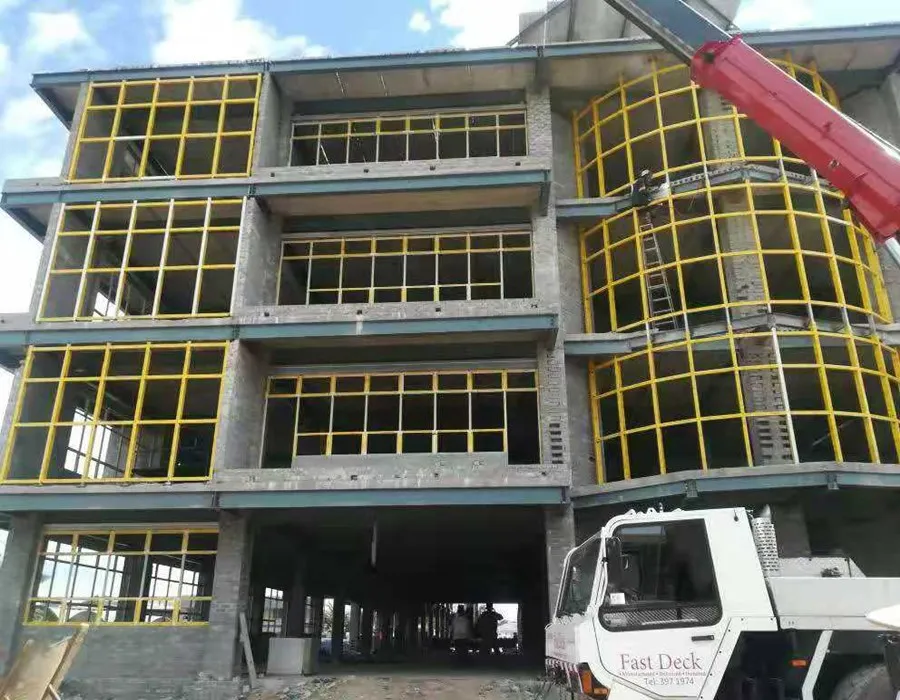

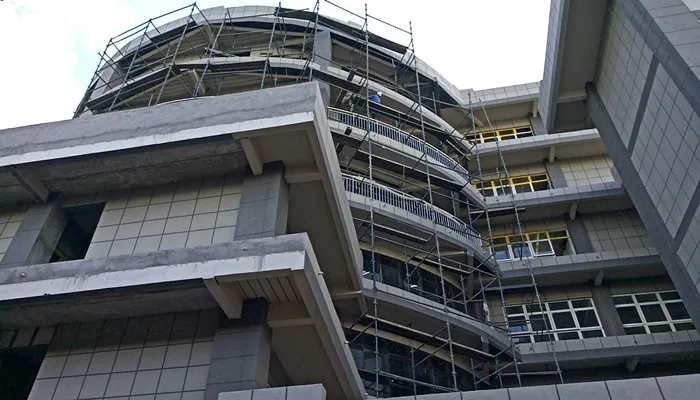

Phase 5: Envelope, Facade, and Final Finishing

The final phase involves completely enclosing the building structure, achieving 100% weatherproofing. A wide variety of wall materials are available, ranging from high-end architectural glass curtain walls and stylish aluminum composite panels to energy-efficient polyurethane (PU) insulated sandwich panels. Next, fire-resistant commercial doors, aluminum alloy windows, and localized drainage systems are installed.



Construction Material Overview and Technical Standards:

All materials engineering performed by Honstar strictly adheres to global safety certification standards, ensuring your project easily passes local municipal building inspections.

Construction Element	Technical Parameter & Grade	Global Standards Compliance
Main Load-Bearing Frames	Factory-welded H-columns and beams, Q355B Structural Steel.	ASTM A36/A572 (US) | EN 10025-2:S355 (EU)
Anti-Corrosion Finish	Shot-blast cleaning to Sa2.5 grade + multi-layer high-durability epoxy paint system (or Optional Hot-Dip Galvanization).	ISO 12944 anti-corrosion rating for high-humidity/coastal zones.
Floor Systems	Profiled galvanized steel floor decking + concrete reinforcement.	High dynamic load bearing, optimized acoustic insulation.

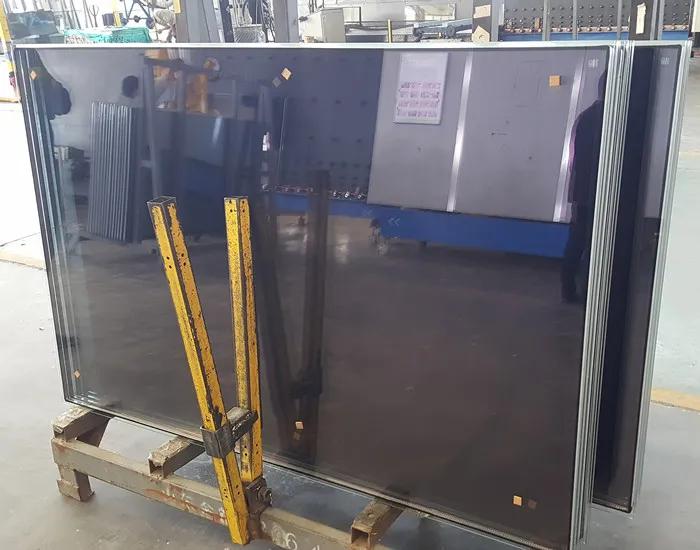

Exterior Facade Options	Double-glazed thermal glass curtain walls, Aluminum Composite Material (ACM), or PU Sandwich Panels.	High energy efficiency, premium architectural aesthetics.
Fastening Systems	High-strength structural bolts (Grade 10.9S / 8.8S).	Engineered to resist heavy typhoon and seismic shear stresses.

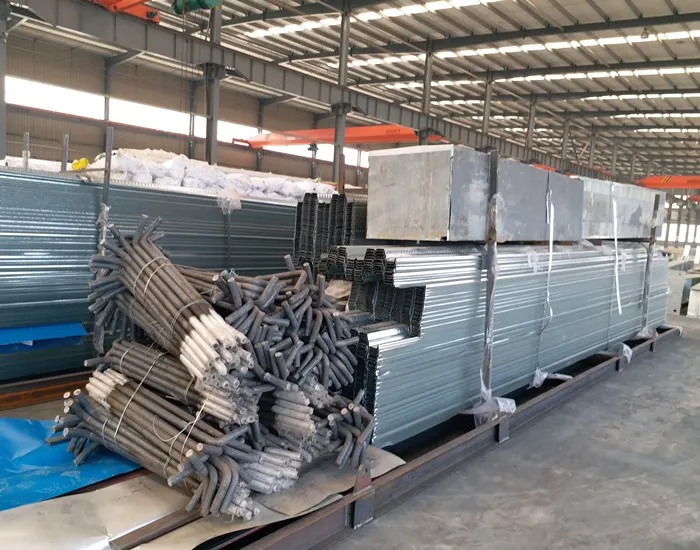

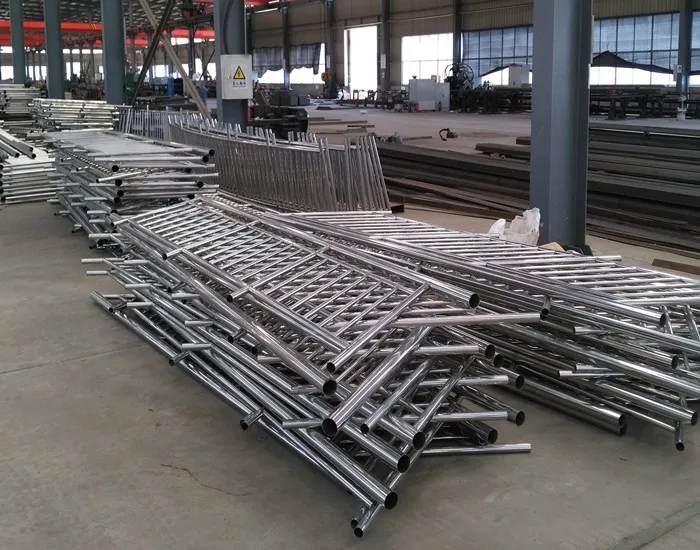

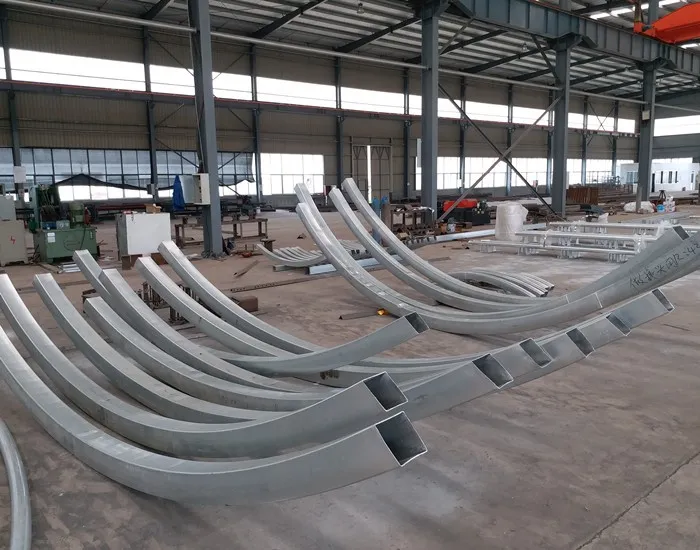

The quality materials we used for the steel office buildings:



Why Choose Honstar For Your Steel Structure Building Construction?



1). Honstar Construction company have 12+ years of exporting works and overseas engineering experience, we have engineered and shipped multi-story office blocks, logistics centers, and large commercial frameworks across Africa, Southeast Asia, and South America. We know how to adapt your designs to handle local climate challenges like coastal salt-spray or heavy tropical monsoons.



2). We have own technical team that can support turnkey project, they can support for the whole process of a project, from custom design, quality fabrication, packing and loading to the on-site construction. Our engineers can give quick response to the customers, with quick quotation and design drawings. Our team have level-one constructor certificates which is the highest degree construction qualification in China.



3). One stop Sourcing service, we not only manufacture the steel strutures, we can help clients to purchase all needed materials for a project relying on huge China manufacturing base with factory direct price. We can package and ship commercial elevators, glass curtain walls, fire doors, office partition grilles, lighting systems, and bathroom fixtures.



4). Honstar provide on-site installation service for the overseas clients. To eliminate local assembly mistakes, Honstar can dispatch senior, English-speaking site installation guidance engineers directly to your project location, do the installation works, train the local workers, and provide all needed technical supports. We can also provide remote guidance for overseas installation works.





Our Service

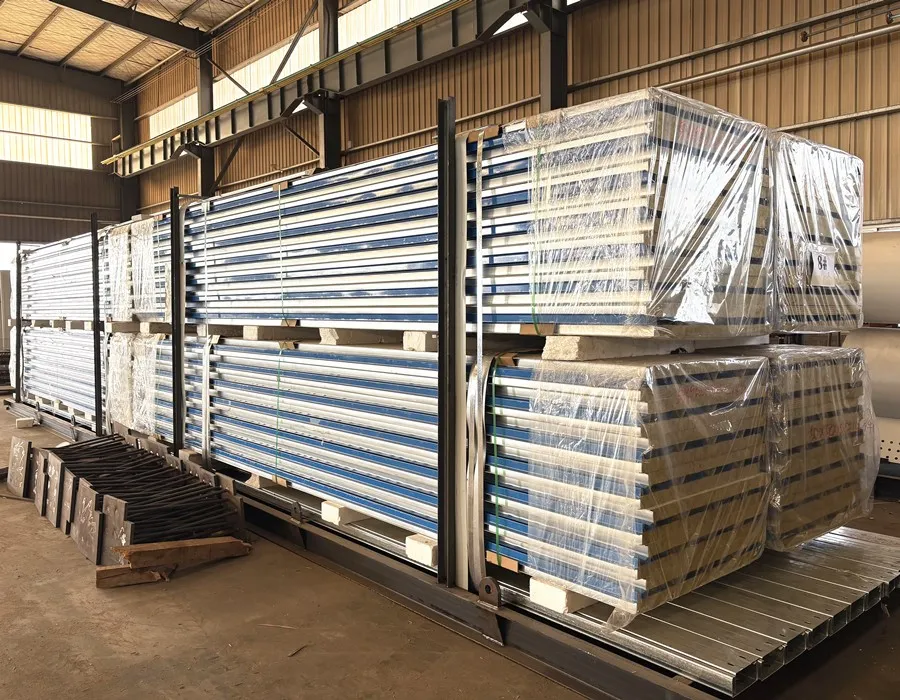

Packing and Loading:

Our technical team will do the most economical packing plan for clients, calculate steel structure materials accurately in order to use the min. quantity of containers, to save shipping freight for clients. We always use the pallets according to container's size, to improve the loading and unloading efficiency.

Guidance on the construction site:

Honstar provides on-site installation service for the overseas clients, we can assign engineers to the local construction sites, do installation works, train the local workers and provide all needed technical supports.

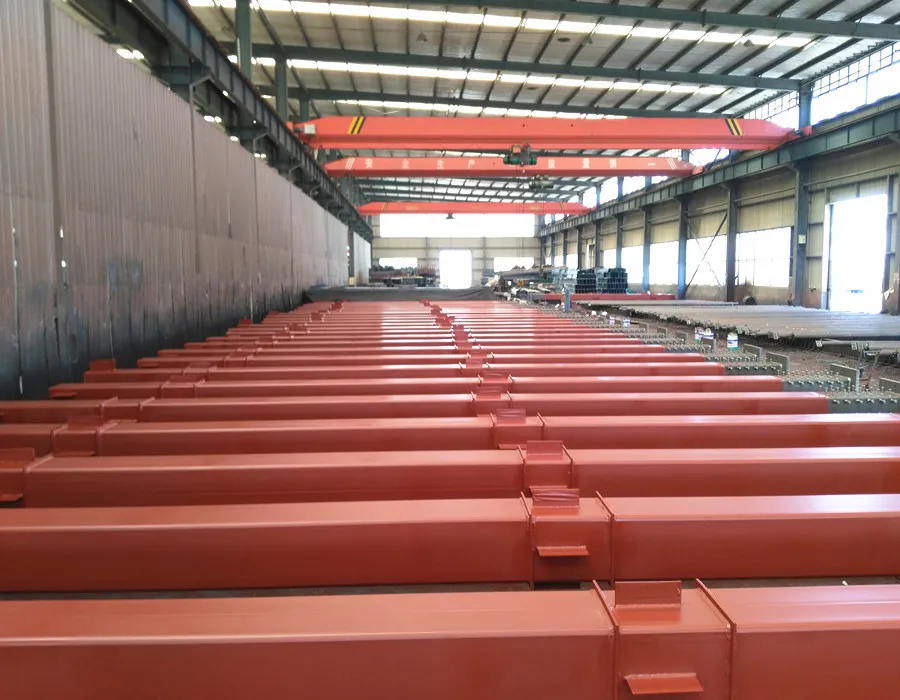

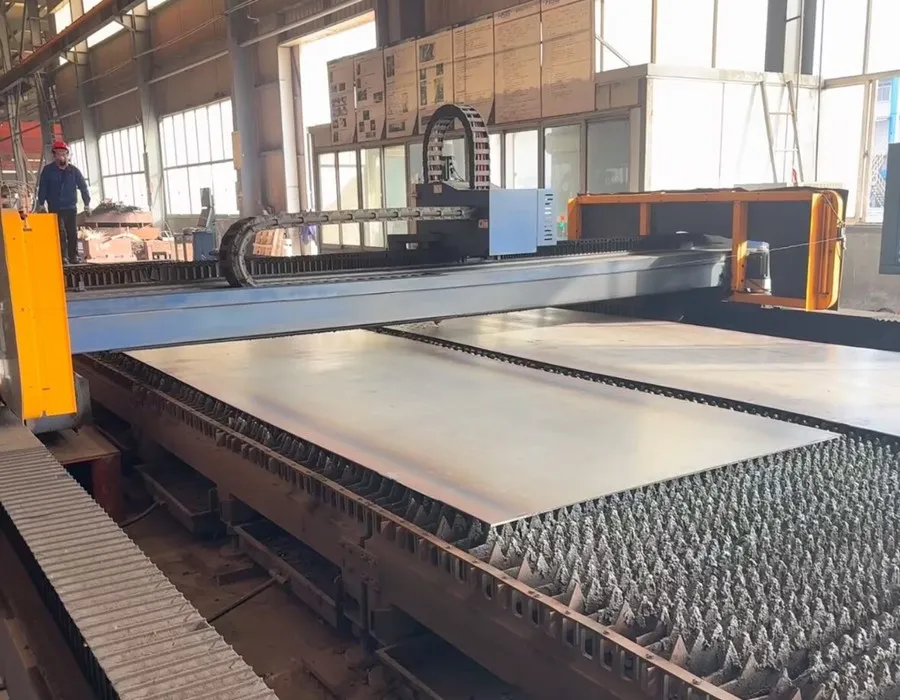

Our Factory

Our steel structure fabrication factory has several production lines with total area 177,000 sqm, and workshop is 67,000 sqm. The factory has independent R & D center, produce high quality steel structures based on the advanced technology and equipment, the manufacturing process and products compliant with ISO, BV, SGS and CE standards for quality and safety.



FAQ



Q1: What concrete preparation is needed before Honstar's steel structure arrives?

A: Your local contractor needs to complete the leveling, excavation, and pouring of concrete foundations with our embedded anchor bolts. Honstar provides precise, engineering-grade foundation layout drawings and loading parameters (axial forces, shear forces) during Phase 1 to ensure your civil engineering works perfectly match our steel frames.



Q2: Can your office building construction system adapt to high seismic (earthquake) zones?

A: Yes. Structural steel features excellent ductility and a high strength-to-weight ratio, making it the safest construction choice for seismic zones. We calculate and design our framing systems under rigorous standards like ANSI/AISC 360-22 or Eurocode 3 to easily absorb and dissipate seismic energy.



Q3: Do you provide interior finishing materials as well?

A: Yes, we offer complete turnkey projects. While our main focus is the core structural shell and envelope, we frequently source and consolidate interior finishing materials-such as acoustic ceiling tiles, drywall partitioning systems, commercial flooring, and MEP fixtures-saving you thousands in procurement costs.
